Led Modules Qiangli Outdoor Q5 Mpro 3840 hz
Qiangli Outdoor Q5 Mpro 3840 hz

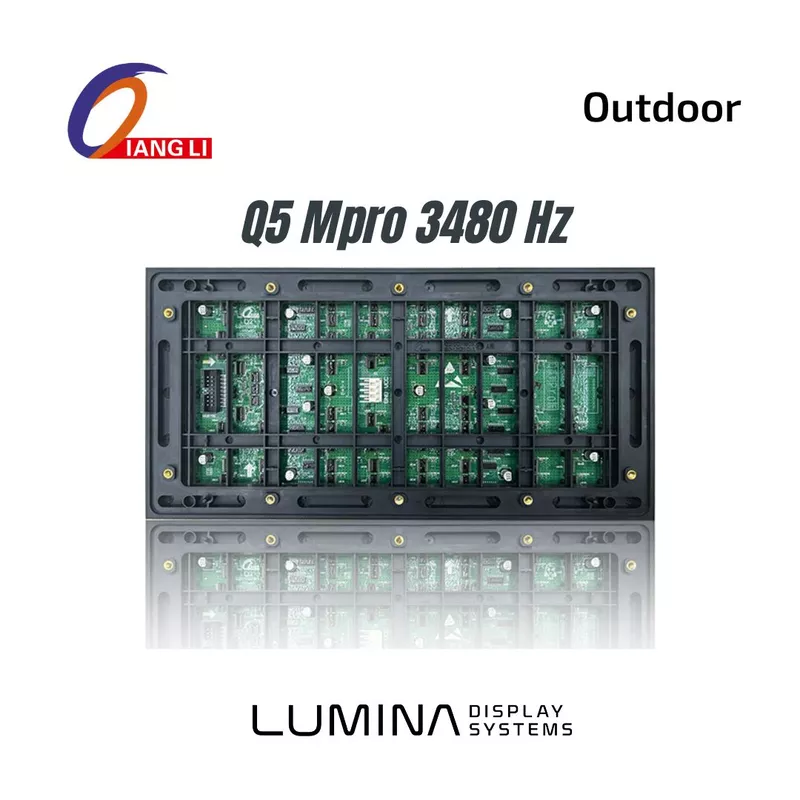

Qiangli Q5 Mpro 3840Hz outdoor LED module — a 5mm pixel pitch, SMD1921 outdoor display module built for high-brightness (4,200 cd/m²) video walls and signage, with a 3,840Hz refresh rate, 1/8 scan constant-current driving, and an IP-rated outdoor build rated for -20°C to 40°C operation.
₹1,050.00
Share :
Product Details
PRODUCT OVERVIEW
Outdoor Full Color Q5 1/8 Scan LED Module — Item No. Q5-8S-H-1921 (Rev 3.2)
Manufacturer: Xiamen Qiangli Jucai Opto-Electronic Technology Co., Ltd.
MODULE SPECIFICATIONS
• Pixel Pitch: 5mm
• Pixel Density: 40,000 dots/m²
• Configuration: 1R1G1B
• LED Lamp: SMD1921
• Module Size (W×H×D): 320 x 160 x 19 mm
• Module Weight: 0.45 kg ± 0.01 kg
• Resolution: 64 x 32 (2,048 dots)
• Input Voltage: DC 4.5V ± 0.1V
• Max Current: ≤9.51A
• Power Consumption: ≤43W
• Driving Method: Constant current, 1/8 scan
DISPLAY PERFORMANCE
• Brightness: 4,200 cd/m²
• Refresh Rate: ≥3,840 Hz
• Frame Rate: ≥60 fps
• Grayscale: 13-bit (RGB each)
• Display Colors: 4,398 billion
• Viewing Angle: 140°±10° (H) / 130°±10° (V)
• Best Viewing Distance: ≥9 m
• Black Spot Ratio: <0.0003% (0% ex-factory)
ENVIRONMENTAL & LIFESPAN
• Operating Environment: Outdoor
• Operating Temperature: -20°C to 40°C
• Storage Temperature: -10°C to 30°C
• Operating Humidity: 10%–90% RH
• Life Span: ≥100,000 hours
• MTBF: ≥10,000 hours
• Brightness Attenuation (3 yrs): ≤15%
RECOMMENDED CABINET (960 x 960 mm)
• Cabinet Size: 960 x 960 x 104.5 mm (module+box) / 169.5 mm (with connector)
• Cabinet Pixel Density: 192 x 192 = 36,864 dots
• Cabinet Weight: 28.5 kg ± 0.5 kg
• Cabinet Max Power: ≤770W
• Average Power (1/3 max): ≤257W
SIGNAL & CONTROL
• Signal Interface: HUB75
• Input Signal: DVI / VGA / HDMI / DP, Composite Video, S-Video, YPbPr (HDTV)
Specifications
Technical Specifications
- Pixel Pitch:5mm
- Pixel Density:40000 dots/m²
- Configuration:1R1G1B SMD1921
- Module Size:320 x 160 x 19 mm
- Module Weight:0.45 kg
- Resolution:64 x 32 (2048 dots)
- Input Voltage:DC 4.5V ±0.1V
- Max Current:9.51A
- Power Consumption:Max 43W - Avg 14W
- Brightness:4200 cd/m²
- Refresh Rate:3840Hz min
- Grayscale:13-bit (RGB)
- Viewing Angle:140°(H) / 130°(V)
- Operating Temperature:-20°C to 40°C
- Life Span:100000 hours min (MTBF 10000 hrs min)
- Recommended Cabinet Size:960 x 960 mm
- Signal Interface:HUB75
