Control Systems Colorlight X2M
Colorlight X2M

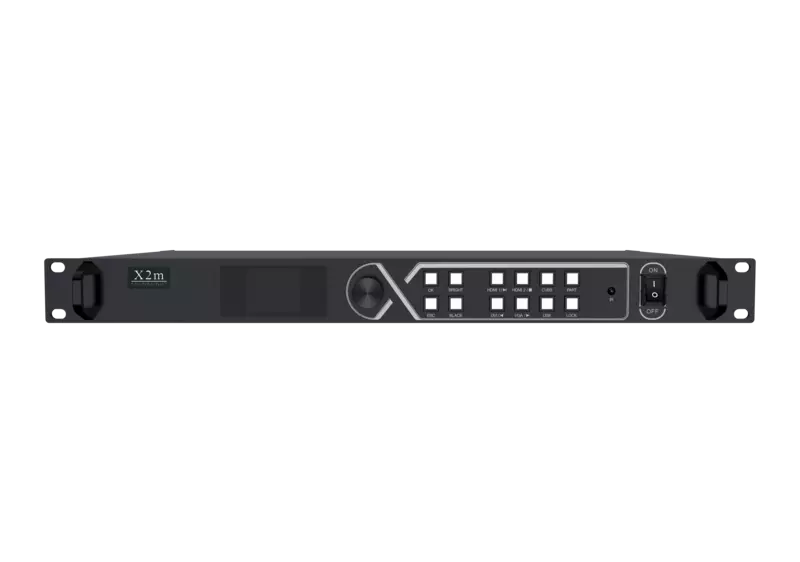

Colorlight X2M LED video controller — a compact 1U LED display processor with 2 Gigabit Ethernet outputs, 1.3 million pixel loading capacity, HDMI/DVI/VGA/CVBS inputs, and USB flash drive playback, built for small-to-medium LED video wall installations.
Non-returnable
₹11,000.00
Share :
Product Details
Product Overview
The Colorlight X2M is a professional LED display control device with powerful video signal source and processing capabilities. It handles up to 1920×1080 HD digital signals across multiple digital interfaces, supports arbitrary zooming and clipping of video sources, and includes USB flash drive content playback — making it ideal for small LED displays that need flexible screen control and high-quality image output.
Input & Output
• Input Resolution: max 1920×1080@60Hz
• Signal Sources: 2×HDMI1.4, 1×DVI, 1×VGA, 1×CVBS, 1×USB (U-disk)
• Output Loading Capacity: 1.3 million pixels
• Max Width / Height: 3840px width / 2000px height
• Ethernet Output Ports: 2× Gigabit Ethernet (supports port redundancy)
Audio & Control
• Audio I/O: 1×3.5mm in, 1×3.5mm out (HDMI/U-disk audio support)
• Control Interface: USB, RS232, IR (optional)
Functions
• Supports switching, clipping and zooming
• Supports screen offset and adjustment (contrast, saturation, chroma, brightness compensation, sharpness)
• Supports Limit Range to Full Range color space conversion
• Supports send/read-back screen correction factor, advanced stitching
• Supports HDCP1.4 and Precise Color Management
• Supports Better Gray Level at Low Brightness
• 16 scene presets, U-disk picture/video playback
Physical & Environmental
• Chassis Size (Unboxed): 482.6 × 44.0 × 292.0 mm
• Chassis Size (Boxed): 523.0 × 95.0 × 340.0 mm
• Net Weight: 3.13kg | Gross Weight: 4.16kg
• Power Input: AC100-240V, 50/60Hz | Rated Power: 10W
• Operating Temperature: -20℃~65℃ (-4°F~149°F) | Operating Humidity: 0%RH~80%RH, no condensation
• Certification: CCC, FCC, CE, UKCA
Manufacturer: Colorlight Cloud Tech Ltd.
The Colorlight X2M is a professional LED display control device with powerful video signal source and processing capabilities. It handles up to 1920×1080 HD digital signals across multiple digital interfaces, supports arbitrary zooming and clipping of video sources, and includes USB flash drive content playback — making it ideal for small LED displays that need flexible screen control and high-quality image output.
Input & Output
• Input Resolution: max 1920×1080@60Hz
• Signal Sources: 2×HDMI1.4, 1×DVI, 1×VGA, 1×CVBS, 1×USB (U-disk)
• Output Loading Capacity: 1.3 million pixels
• Max Width / Height: 3840px width / 2000px height
• Ethernet Output Ports: 2× Gigabit Ethernet (supports port redundancy)
Audio & Control
• Audio I/O: 1×3.5mm in, 1×3.5mm out (HDMI/U-disk audio support)
• Control Interface: USB, RS232, IR (optional)
Functions
• Supports switching, clipping and zooming
• Supports screen offset and adjustment (contrast, saturation, chroma, brightness compensation, sharpness)
• Supports Limit Range to Full Range color space conversion
• Supports send/read-back screen correction factor, advanced stitching
• Supports HDCP1.4 and Precise Color Management
• Supports Better Gray Level at Low Brightness
• 16 scene presets, U-disk picture/video playback
Physical & Environmental
• Chassis Size (Unboxed): 482.6 × 44.0 × 292.0 mm
• Chassis Size (Boxed): 523.0 × 95.0 × 340.0 mm
• Net Weight: 3.13kg | Gross Weight: 4.16kg
• Power Input: AC100-240V, 50/60Hz | Rated Power: 10W
• Operating Temperature: -20℃~65℃ (-4°F~149°F) | Operating Humidity: 0%RH~80%RH, no condensation
• Certification: CCC, FCC, CE, UKCA
Manufacturer: Colorlight Cloud Tech Ltd.
Specifications
Technical Specifications
- Signal Sources (Input):2×HDMI1.4, 1×DVI, 1×VGA, 1×CVBS, 1×USB (U-disk)
- Input Resolution:max 1920×1080@60Hz
- Output Loading Capacity:1.3 million pixels
- Max Width / Height:3840px width / 2000px height
- Ethernet Output Ports:2× Gigabit Ethernet
- Audio I/O:1×3.5mm in, 1×3.5mm out (HDMI/U-disk audio support)
- Control Interface:USB, RS232, IR (optional)
- Chassis Size (Unboxed):482.6 × 44.0 × 292.0 mm
- Chassis Size (Boxed):523.0 × 95.0 × 340.0 mm
- Net Weight:3.13 kg
- Gross Weight:4.16 kg
- Power Input:AC100-240V, 50/60Hz
- Rated Power:10W
- Operating Temperature:-20°C to 65°C (-4°F to 149°F)
- Operating Humidity:0%RH-80%RH, no condensation
- Certification:CCC, FCC, CE, UKCA
