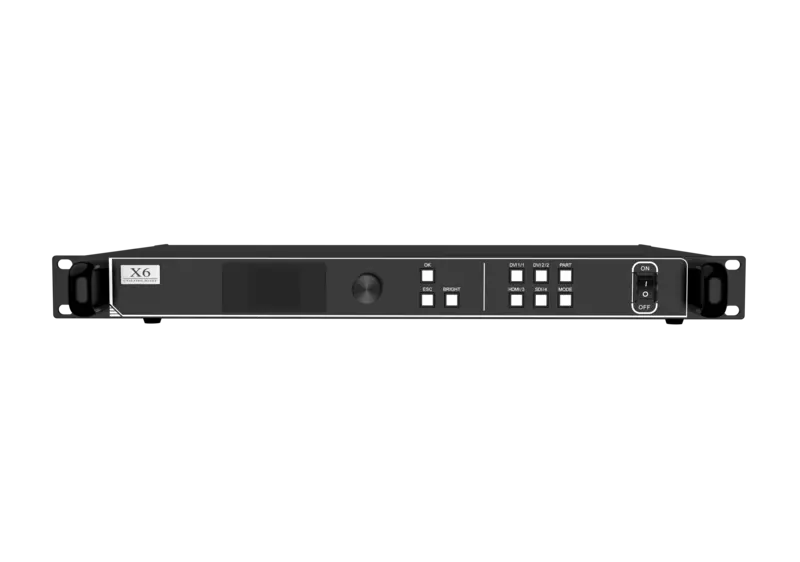

Control Systems Colorlight X6
Colorlight X6
Colorlight X6 professional LED video processor with 6 Gigabit Ethernet outputs, 3.9 million pixel loading capacity, DVI/HDMI/SDI inputs, and multi-window video processing, built for large-scale LED video wall installations.
Non-returnable
₹44,000.00
Share :
Product Details
Product Overview
The Colorlight X6 is a professional LED display video processor with high-capacity signal processing for large LED video walls. It handles up to 1920×1200 digital signals across DVI, HDMI and SDI interfaces, supports multi-layer video composition and screen cascading, and includes precise color management — built for large-format displays that demand high pixel density and reliable, redundant control.
Input & Output
• Input Resolution: max 1920×1200@60Hz
• Signal Sources: 2×DVI, 1×HDMI1.4, 1×SDI
• Output Loading Capacity: 3.9 million pixels
• Max Width / Height: 8192px width / 4096px height
• Ethernet Output Ports: 6× Gigabit Ethernet (supports port redundancy)
Audio & Control
• Audio I/O: 1×3.5mm in, 1×3.5mm out (HDMI audio decoding)
• Control Interface: RS232, USB IN/OUT (cascading)
Functions
• Supports video source switching, scaling and multi-window composition
• Supports screen offset and adjustment (contrast, saturation, chroma, brightness compensation, sharpness)
• Supports Limit Range to Full Range color space conversion
• Supports send/read-back screen correction factor, advanced stitching and cascading
• Supports HDCP1.4 and Precise Color Management
• Supports Better Gray Level at Low Brightness
Physical & Environmental
• Chassis Size (Unboxed): 482.6 × 44.0 × 306.2 mm
• Chassis Size (Boxed): 525.0 × 95.0 × 355.0 mm
• Net Weight: 3.07kg | Gross Weight: 4.28kg
• Power Input: AC100-240V, 50/60Hz | Rated Power: 30W (with all cards installed)
• Operating Temperature: -20℃~60℃ (-4°F~140°F) | Operating Humidity: 0%RH~80%RH, non-condensing
• Certification: CCC, CE, FCC, IC, EAC, UKCA
Manufacturer: Colorlight Cloud Tech Ltd.
The Colorlight X6 is a professional LED display video processor with high-capacity signal processing for large LED video walls. It handles up to 1920×1200 digital signals across DVI, HDMI and SDI interfaces, supports multi-layer video composition and screen cascading, and includes precise color management — built for large-format displays that demand high pixel density and reliable, redundant control.
Input & Output
• Input Resolution: max 1920×1200@60Hz
• Signal Sources: 2×DVI, 1×HDMI1.4, 1×SDI
• Output Loading Capacity: 3.9 million pixels
• Max Width / Height: 8192px width / 4096px height
• Ethernet Output Ports: 6× Gigabit Ethernet (supports port redundancy)
Audio & Control
• Audio I/O: 1×3.5mm in, 1×3.5mm out (HDMI audio decoding)
• Control Interface: RS232, USB IN/OUT (cascading)
Functions
• Supports video source switching, scaling and multi-window composition
• Supports screen offset and adjustment (contrast, saturation, chroma, brightness compensation, sharpness)
• Supports Limit Range to Full Range color space conversion
• Supports send/read-back screen correction factor, advanced stitching and cascading
• Supports HDCP1.4 and Precise Color Management
• Supports Better Gray Level at Low Brightness
Physical & Environmental
• Chassis Size (Unboxed): 482.6 × 44.0 × 306.2 mm
• Chassis Size (Boxed): 525.0 × 95.0 × 355.0 mm
• Net Weight: 3.07kg | Gross Weight: 4.28kg
• Power Input: AC100-240V, 50/60Hz | Rated Power: 30W (with all cards installed)
• Operating Temperature: -20℃~60℃ (-4°F~140°F) | Operating Humidity: 0%RH~80%RH, non-condensing
• Certification: CCC, CE, FCC, IC, EAC, UKCA
Manufacturer: Colorlight Cloud Tech Ltd.
Specifications
Technical Specifications
- Signal Sources (Input):2×DVI, 1×HDMI1.4, 1×SDI
- Input Resolution:max 1920×1200@60Hz
- Output Loading Capacity:3.9 million pixels
- Max Width / Height:8192px width / 4096px height
- Ethernet Output Ports:6× Gigabit Ethernet
- Audio I/O:1×3.5mm in, 1×3.5mm out (HDMI audio decoding)
- Control Interface:RS232, USB IN/OUT (cascading)
- Chassis Size (Unboxed):482.6 × 44.0 × 306.2 mm
- Chassis Size (Boxed):525.0 × 95.0 × 355.0 mm
- Net Weight:3.07 kg
- Gross Weight:4.28 kg
- Power Input:AC100-240V, 50/60Hz
- Rated Power:30W (with all cards installed)
- Operating Temperature:-20°C to 60°C (-4°F to 140°F)
- Operating Humidity:0%RH-80%RH, non-condensing
- Certification:CCC, CE, FCC, IC, EAC, UKCA
