Curved corner MS CABINET 640 MM X 960 MM
Share :

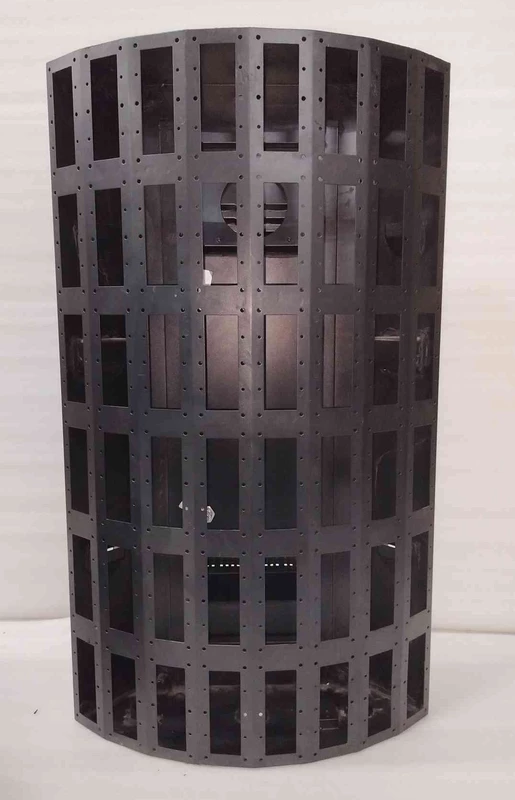

A 640 x 960 mm curved corner cabinet from Lumina's MS range, fabricated in imported 1.2 mm galvanised iron sheet and finished in powder-coated matte. The curved profile gives a smooth bend in the screen surface, which is the right choice for column wraps and curved facades where a faceted corner would show. The cabinet is rust-proof and waterproof, and modules are serviced from the rear.
Key details
- Cabinet size 640 x 960 mm, curved corner
- Imported GI sheet, 1.2 mm thickness
- Powder-coated matte finish, rust-proof
- Waterproof, outdoor rated
- Multi-hole mounting for 320 x 160 mm modules
- Back service
For integrators and sign makers building curved outdoor and indoor LED screens in India. The multi-hole pattern accepts 320 x 160 mm modules from the brands Lumina stocks, and the wall can be driven by Colorlight receiving cards with CZCL power supplies. Matching curved cabinets in 640 x 800 mm and 640 x 1280 mm sizes are listed separately.
Ex-stock Mumbai, delivered across India by Lumina Display Systems.
Technical Specifications
- Material:Imported GI (Galvanized Iron) Sheet - 1.2mm thickness
- Waterproof Rating:Waterproof (Outdoor)
- Cabinet Design:Multi-hole mounting - compatible with LED modules from all popular brands
- Corrosion Resistance:Rust-proof - will not corrode
- Surface Finish:Powder-coated Matte finish
- Included Accessories:Mounting clamps and power supply mounting plate included
- Receiving Card Mounting:Receiving card mounting plate supplied
- Country of Origin:Imported from China
- Cabinet Dimensions (W x H x D):640 x 960 x 120 mm
