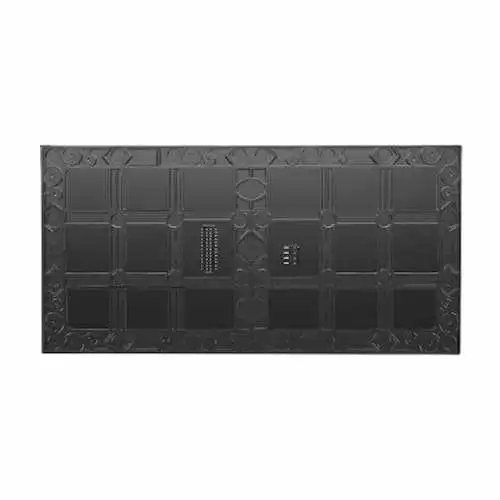

Product OverviewThe IFS-UIA1.5S-C is a P1.53 indoor COB (Chip-on-Board) 3-in-1 LED display module from Dahua FeuVision, designed for high-density indoor video wall applications. Using red, green and blue COB 3-in-1 LED chips, it delivers a contrast ratio up to 10000:1, a viewing angle above 160°, and stable, uniform brightness with no flicker or graininess, making it ideal for control rooms, broadcast studios, retail displays, and premium indoor signage.
Module Specifications
• Product Model: IFS-UIA1.5S-C | Module Size: 320mm(W) x 160mm(H)
• Pixel Pitch: 1.538mm | Pixel Density: 422,753 dots/m²
• LED Specification: COB 3 in 1 | Pixel Configuration: 1R1G1B
• Pixel Resolution: 208dots(W) x 104dots(H) | Weight: 0.5kg/pcs
Display Performance
• Viewing Angle: 160°(H)/160°(V) | Brightness of White Balance: 600cd/m²
• Refresh Frequency: 3840Hz | Grayscale: 13 bit
• Contrast Ratio: up to 10000:1
Electrical Parameters
• Working Voltage: DC 4.5V | Max Power Consumption: ≈21W/pcs
• Channel-to-channel and chip-to-chip current error: within ±2.0%
Environmental & Lifespan
• Operating Environment: Indoor | Waterproof: IP65 Front
• Working Temperature/Humidity: -10℃~+40℃ / 20%~70%RH
• Storage Temperature/Humidity: -20℃~+60℃ / 10%~90%RH
Packaging & Power Supply
• Packing: 40pcs/box | 40A Power Supply: loads 4pcs modules | 60A Power Supply: loads 6pcs modules
• Accessories: magnetic suction module connectors, power cable (2.0 sq main / 0.628 sq branch), flat cable (2x13p, 200mm between modules)
Manufacturer: Dahua Technology / FeuVision
