Colorlight A60 Controller

The Colorlight A60 is a compact async/sync LED display controller designed for reliable, all-in-one control of LED video walls. It combines onboard offline playback with live synchronous input, supporting resolutions up to 4096x2560 and giving integrators a flexible single-box solution for both fixed installations and rental/staging setups.

• Memory: 32GB (25GB available)

• Loading Capacity: 1300000 pixels | max 4096x2560

• Supported Receiver: All Colorlight receivers

• Video Format Support: HEVC(H.265) / H.264

• Audio Format Support: AAC-LC

• Connectivity: USB / LAN / WiFi

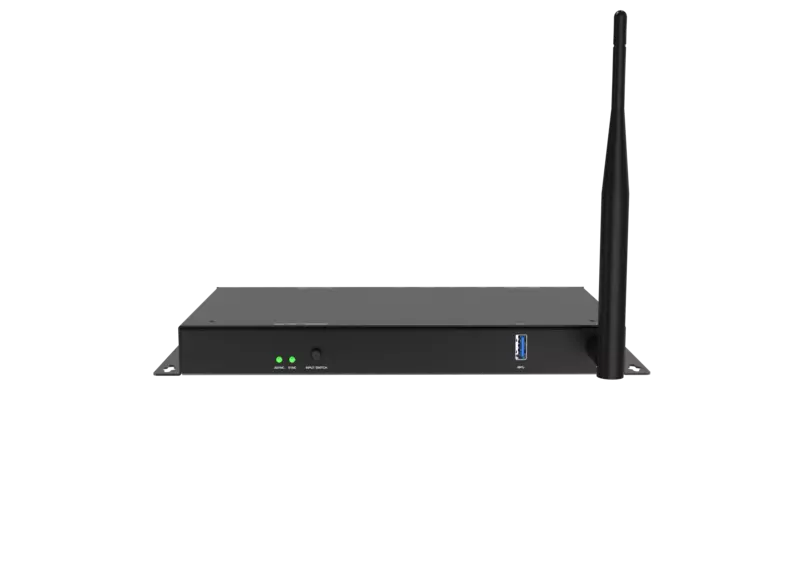

• Front Panel Ports: ASYNC-SYNC indicator / Input Switch / USB-A 3.0 / WiFi antenna

• Rear Panel Ports: DC 12V/1A in / 2x Sensor RJ11 / USB-B config / LAN / Audio Out 3.5mm / HDMI In / 2x Gigabit Port

• Power Input: DC 12V 1A

• Rated Power: 9W

• Operating Temperature: -30°C to 80°C (-22°F to 176°F)

• Operating Humidity: 0-95% non-condensing

• Dimensions (Unboxed): 256.4 x 127.6 x 26.2 mm

• Net Weight: 0.88 kg

Manufactured by Colorlight.
