Control Systems ACG7516 / 5A75E Receiving Card
ACG7516 / 5A75E Receiving Card

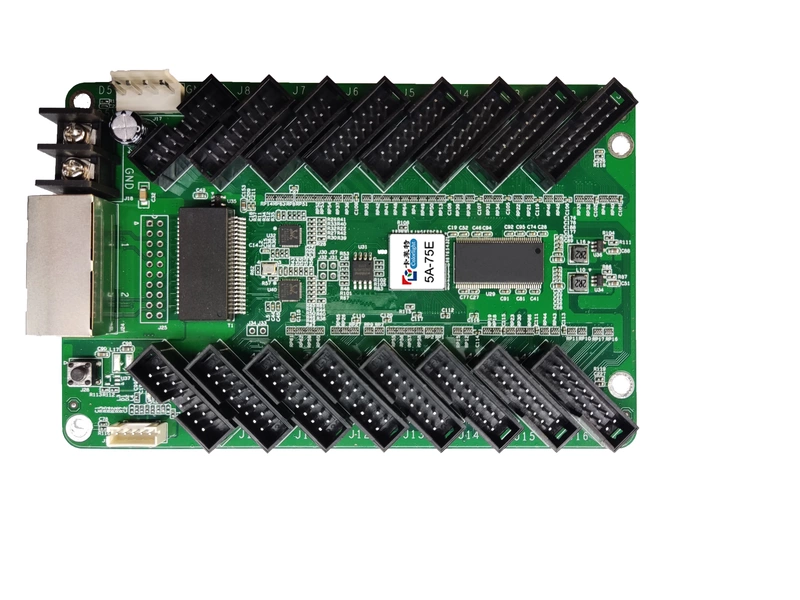

ACG7516 / 5A75E Receiving Card — a 16-port Colorlight HUB75 receiving card supporting up to 256x1024 pixels per card, 32 groups of parallel RGB data, 240Hz high frame rate output, pixel-level calibration, and loop + firmware redundancy for reliable 24/7 LED display operation.
₹1,550.00
Share :
Product Details
Product Overview
The Colorlight ACG7516 (5A75E) is a cost-effective receiving card built to reduce cabling complexity, minimize failure points, and lower failure rates. It supports up to 256x1024 pixels per card via 16 HUB75 ports, with adaptive high frame rate output (up to 240Hz), pixel-level brightness/chroma calibration, and loop + firmware redundancy for 24/7 uninterrupted operation.
Control & Data
• HUB75 Ports: 16 (J1~J16)
• Max Load Capacity: Common driver ICs 128x1024 px | PWM/SHIXIN driver ICs 256x1024 px
• Data Groups: 32 groups parallel RGB data | 32 groups serial RGB data (expandable to 128 groups)
• Supported Driver ICs: Common, PWM, SHIXIN
• Scan Methods: any scan type from static to 1/128 scan
• Grayscale Level: up to 65,536 levels
Display Features
• 8-bit video source input, 16,777,216 mixed colors
• Adaptive frame rate: standard/non-integer rates (23.98-60Hz), 120/240Hz high frame rate output
• Color temperature adjustment, improved grayscale at low brightness
• Pixel-level brightness and chroma calibration (8-bit)
Reliability
• Loop redundancy and firmware redundancy
• Cable status monitoring and hardware error detection
• 24/7 uninterrupted operation
Physical & Electrical
• Dimensions (L x W x H): 145.2 x 91.7 x 18.4 mm
• Net Weight: 100g / 0.22lbs
• Hardware Connector: HUB75
• Transmission Rate: 1Gb/s | Communication Distance: CAT5e ≤100m (recommended)
• Power Supply: DC 3.8-5.5V, 0.6A | Rated Power: 3.0W
• ESD Protection (HBM): 2KV
Environmental
• Operating: -25℃ to 75℃ (-13°F to 167°F), 0%RH-80%RH non-condensing
• Storage: -40℃ to 125℃ (-40°F to 257°F), 0%RH-90%RH non-condensing
Certification: RoHS
Manufacturer: Colorlight Cloud Tech Ltd.
The Colorlight ACG7516 (5A75E) is a cost-effective receiving card built to reduce cabling complexity, minimize failure points, and lower failure rates. It supports up to 256x1024 pixels per card via 16 HUB75 ports, with adaptive high frame rate output (up to 240Hz), pixel-level brightness/chroma calibration, and loop + firmware redundancy for 24/7 uninterrupted operation.
Control & Data
• HUB75 Ports: 16 (J1~J16)
• Max Load Capacity: Common driver ICs 128x1024 px | PWM/SHIXIN driver ICs 256x1024 px
• Data Groups: 32 groups parallel RGB data | 32 groups serial RGB data (expandable to 128 groups)
• Supported Driver ICs: Common, PWM, SHIXIN
• Scan Methods: any scan type from static to 1/128 scan
• Grayscale Level: up to 65,536 levels
Display Features
• 8-bit video source input, 16,777,216 mixed colors
• Adaptive frame rate: standard/non-integer rates (23.98-60Hz), 120/240Hz high frame rate output
• Color temperature adjustment, improved grayscale at low brightness
• Pixel-level brightness and chroma calibration (8-bit)
Reliability
• Loop redundancy and firmware redundancy
• Cable status monitoring and hardware error detection
• 24/7 uninterrupted operation
Physical & Electrical
• Dimensions (L x W x H): 145.2 x 91.7 x 18.4 mm
• Net Weight: 100g / 0.22lbs
• Hardware Connector: HUB75
• Transmission Rate: 1Gb/s | Communication Distance: CAT5e ≤100m (recommended)
• Power Supply: DC 3.8-5.5V, 0.6A | Rated Power: 3.0W
• ESD Protection (HBM): 2KV
Environmental
• Operating: -25℃ to 75℃ (-13°F to 167°F), 0%RH-80%RH non-condensing
• Storage: -40℃ to 125℃ (-40°F to 257°F), 0%RH-90%RH non-condensing
Certification: RoHS
Manufacturer: Colorlight Cloud Tech Ltd.
Specifications
Technical Specifications
- Hardware Connector:HUB75 connectors
- HUB Ports:16 ports (J1-J16)
- Control Area per Card (Max Load):Common driver ICs: 128x1024 px | PWM-SHIXIN driver ICs: 256x1024 px
- Data Groups:32 groups parallel RGB data / 32 groups serial (expandable to 128)
- Grayscale Level:Up to 65536 levels
- Supported Driver ICs:Common PWM and SHIXIN
- Scan Methods:Any scan type from static to 1/128 scan
- Transmission Rate:1Gb/s
- Communication Distance:CAT5e up to 100m (recommended)
- Dimensions (L x W x H):145.2 x 91.7 x 18.4 mm
- Net Weight:100g / 0.22lbs
- Power Supply:DC 3.8-5.5V 0.6A
- Rated Power:3.0W
- ESD Protection (HBM):2KV
- Operating Temperature:-25C to 75C (-13F to 167F)
- Operating Humidity:0%RH-80%RH non-condensing
- Storage Temperature:-40C to 125C (-40F to 257F)
- Storage Humidity:0%RH-90%RH non-condensing
- Certification:RoHS
