Control Systems Colorlight A40
Colorlight A40
Colorlight A40 asynchronous & synchronous LED player — a compact all-in-one control box that loads up to 650,000 pixels (max 4096×2560) over 1x Gigabit Ethernet output, plays video, images, text and streaming content from 32GB onboard storage, and supports HDMI 1.4 input plus WiFi/4G/5G connectivity for remote management via PlayerMaster and LED Assistant.
Non-returnable
₹13,500.00
Share :
Product Details
Product Overview
Colorlight A40 Asynchronous & Synchronous LED Player (Colorlight Cloud Tech Ltd.) is a compact all-in-one playback and control terminal supporting both synchronous display and asynchronous playback, with arbitrary multi-window program arrangement (video, pictures, text, tables, clocks, streaming media, web pages, weather) edited and published via PlayerMaster.
Key Features
Synchronous input or asynchronous playback with configurable priority
1x Gigabit Ethernet output | Loading capacity: 650000 pixels, max 4096x2560
1x HDMI 1.4 input | 4G module (optional)
Audio output | 32GB memory (28GB available), USB playback supported
Fully compatible with conventional synchronous control system program management
Media & Display Support
Video formats: HEVC (H.265), H.264, H263, MVC, MPEG-4, MPEG-1/2, VP8, VP9, VC-1, Motion JPEG
Audio formats: AAC-LC, HE-AAC, HE-AAC V2, MP3, Linear PCM
Image formats: BMP, JPG, PNG, GIF, WEBP, etc. | Text formats: TXT, RTF, Word, PPT, Excel
Multi-window: up to 2x 1080P or 4x 720P video windows, rolling subtitles, LOGO, date/time, weather, free screen split
Window overlapping with transparent/opaque effects | RTC real-time clock display
Connectivity & Control
Connection: LAN / WiFi / 4G / 5G
Program update: U-disk plug-and-play, network management and publishing, direct USB cable release
Manage via PC, Android, iOS smart terminals
Wireless control: brightness adjustment, sync/async switching, on/off, parameter configuration, playback control
Automatic brightness adjustment by fixed time or ambient light sensor (sensor sold separately)
LAN scheduling: inter-cut and rotation playback, timed brightness, timed sleep, wake-up, restart
Management software: PlayerMaster (PC), LED Assistant (Android/iOS)
Ports & Interfaces
Front panel: 4G antenna, ASYNC/SYNC indicator, Input Switch button, SIM slot, USB-A 3.0 (5V/1A output), WiFi antenna

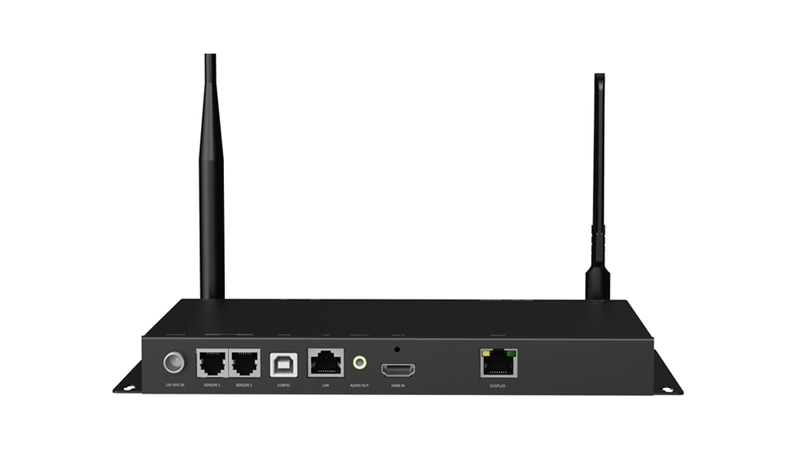

Rear panel: DC 12V/2A power input, 2x Sensor (RJ11) ports, USB-B config port, LAN (Fast Ethernet), Audio Out (3.5mm TRS), HDMI 1.4 in, Gigabit Display output to receiver
Physical & Environmental
Dimensions: 256.4 x 137.4 x 26.2 mm (unboxed, no antenna) | Net Weight: 0.88kg
Power Input: DC 12V, 2A | Rated Power: 9W
Operating Temperature: -20°C to 65°C (-4°F to 149°F) | Humidity: 0-95% non-condensing
Specifications
Technical Specifications
- Memory:32GB (28GB available)
- Loading Capacity:650000 pixels | max 4096x2560
- Supported Receiver:All Colorlight receivers
- Video Format Support:HEVC(H.265) / H.264 / H263 / MVC / MPEG-4 / MPEG-1/2 / VP8 / VP9 / VC-1 / Motion JPEG
- Audio Format Support:AAC-LC / HE-AAC / HE-AAC V2 / MP3 / Linear PCM
- Connectivity:LAN / WiFi / 4G / 5G
- Front Panel Ports:4G antenna / ASYNC-SYNC indicator / Input Switch / SIM slot / USB-A 3.0 / WiFi antenna
- Power Input:DC 12V 2A
- Rated Power:9W
- Operating Temperature:-20°C to 65°C (-4°F to 149°F)
- Operating Humidity:0-95% non-condensing
- Dimensions (Unboxed):256.4 x 137.4 x 26.2 mm
- Net Weight:0.88 kg
- Rear Panel Ports:DC 12V/2A in / 2x Sensor RJ11 / USB-B config / LAN / Audio Out 3.5mm / HDMI 1.4 in / Gigabit Display out
