Colorlight ACG7508 Receiving Card (E80 equivalent)
ACG7508 / E80 Receiving Card — an 8-port Colorlight HUB75 receiving card supporting up to 512x256 pixels per card (PWM driver ICs), 16 groups of parallel RGB data, 240Hz high frame rate output, pixel-level calibration, and loop + firmware redundancy for reliable 24/7 LED display operation.
₹1,200.00
Share :
Product Details
Product Overview

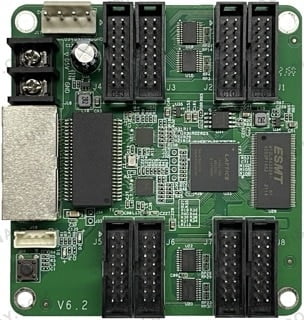

The Colorlight ACG7508 (E80) is a cost-effective receiving card built to reduce cabling complexity, minimize failure points, and lower failure rates. It supports up to 512x256 pixels per card (PWM driver ICs) via 8 HUB75 ports, with adaptive high frame rate output (up to 240Hz), pixel-level brightness/chroma calibration, and loop + firmware redundancy for 24/7 uninterrupted operation.
Control & Data
• HUB75 Ports: 8 (J1~J8)
• Max Load Capacity: PWM driver ICs 512x256 px | Common driver ICs 512x128 px | LS driver ICs 512x162 px
• Data Groups: 16 groups parallel RGB data | 32 groups serial RGB data (expandable to 128 groups)
• Supported Driver ICs: Common, PWM, SHIXIN
• Scan Methods: any scan type from static to 1/128 scan
• Grayscale Level: up to 65,536 levels
Display Features
• 8-bit video source input, 16,777,216 mixed colors
• Adaptive frame rate: standard/non-integer rates (23.98-60Hz), 120/240Hz high frame rate output
• Color temperature adjustment, improved grayscale at low brightness
• Pixel-level brightness and chroma calibration (8-bit)
Reliability
• Loop redundancy and firmware redundancy
• Cable status monitoring and hardware error detection
• 24/7 uninterrupted operation
Physical & Electrical
• Dimensions (L x W x H): 86.8 x 91.7 x 18.4 mm
• Net Weight: 61g / 0.13lbs
• Hardware Connector: HUB75
• Transmission Rate: 1Gb/s | Communication Distance: CAT5e ≤100m (recommended)
• Power Supply: DC 3.8-5.5V, 0.6A | Rated Power: 3.0W
• ESD Protection (HBM): 2KV
Environmental
• Operating: -25℃ to 75℃ (-13°F to 167°F), 0%RH-80%RH non-condensing
• Storage: -40℃ to 125℃ (-40°F to 257°F), 0%RH-90%RH non-condensing
Certification: RoHS
Manufacturer: Colorlight Cloud Tech Ltd.
The Colorlight ACG7508 (E80) is a cost-effective receiving card built to reduce cabling complexity, minimize failure points, and lower failure rates. It supports up to 512x256 pixels per card (PWM driver ICs) via 8 HUB75 ports, with adaptive high frame rate output (up to 240Hz), pixel-level brightness/chroma calibration, and loop + firmware redundancy for 24/7 uninterrupted operation.
Control & Data
• HUB75 Ports: 8 (J1~J8)
• Max Load Capacity: PWM driver ICs 512x256 px | Common driver ICs 512x128 px | LS driver ICs 512x162 px
• Data Groups: 16 groups parallel RGB data | 32 groups serial RGB data (expandable to 128 groups)
• Supported Driver ICs: Common, PWM, SHIXIN
• Scan Methods: any scan type from static to 1/128 scan
• Grayscale Level: up to 65,536 levels
Display Features
• 8-bit video source input, 16,777,216 mixed colors
• Adaptive frame rate: standard/non-integer rates (23.98-60Hz), 120/240Hz high frame rate output
• Color temperature adjustment, improved grayscale at low brightness
• Pixel-level brightness and chroma calibration (8-bit)
Reliability
• Loop redundancy and firmware redundancy
• Cable status monitoring and hardware error detection
• 24/7 uninterrupted operation
Physical & Electrical
• Dimensions (L x W x H): 86.8 x 91.7 x 18.4 mm
• Net Weight: 61g / 0.13lbs
• Hardware Connector: HUB75
• Transmission Rate: 1Gb/s | Communication Distance: CAT5e ≤100m (recommended)
• Power Supply: DC 3.8-5.5V, 0.6A | Rated Power: 3.0W
• ESD Protection (HBM): 2KV
Environmental
• Operating: -25℃ to 75℃ (-13°F to 167°F), 0%RH-80%RH non-condensing
• Storage: -40℃ to 125℃ (-40°F to 257°F), 0%RH-90%RH non-condensing
Certification: RoHS
Manufacturer: Colorlight Cloud Tech Ltd.
Specifications
Technical Specifications
- Hardware Connector:HUB75 connectors
- HUB Ports:8 ports (J1-J8)
- Control Area per Card (Max Load):PWM driver ICs: 512x256 px | Common driver ICs: 512x128 px | LS driver ICs: 512x162 px
- Data Groups:16 groups parallel RGB data / 32 groups serial (expandable to 128)
- Grayscale Level:Up to 65536 levels
- Supported Driver ICs:Common PWM and SHIXIN
- Scan Methods:Any scan type from static to 1/128 scan
- Transmission Rate:1Gb/s
- Communication Distance:CAT5e up to 100m (recommended)
- Dimensions (L x W x H):86.8 x 91.7 x 18.4 mm
- Net Weight:61g / 0.13lbs
- Power Supply:DC 3.8-5.5V 0.6A
- Rated Power:3.0W
- ESD Protection (HBM):2KV
- Operating Temperature:-25C to 75C (-13F to 167F)
- Operating Humidity:0%RH-80%RH non-condensing
- Storage Temperature:-40C to 125C (-40F to 257F)
- Storage Humidity:0%RH-90%RH non-condensing
- Certification:RoHS
Ratings And Reviews
