Aluminium Diecast Indoor 320x160H Lot1

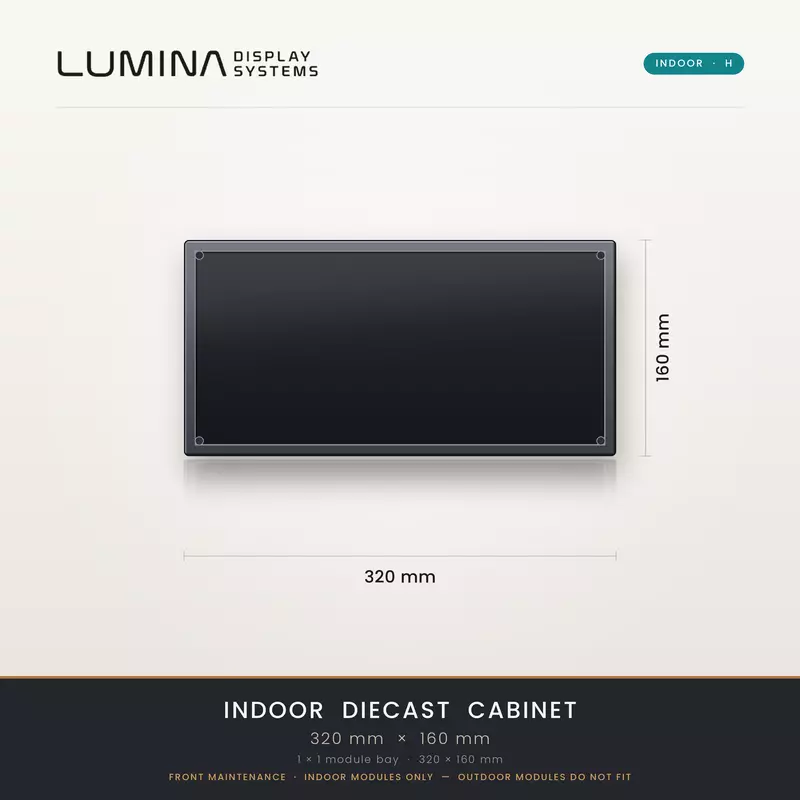

Aluminium alloy diecast indoor cabinet, 320 x 160 x 48 mm, for a single 320 x 160 mm module. Weighs 0.72 kg without module and PSU, front serviceable, supplied with two locating pins.
Non-returnable
₹1,100.00
Share :
Product Details
The 320 x 160H cabinet is a single-module indoor unit cast in aluminium alloy, 48 mm deep and weighing just 0.72 kg before the module and power supply go in. The H designation identifies this casting pattern within Lumina's lot 1 stock. Two locating pins are included to register adjacent cabinets, and the module is serviced from the front.
Key details
- Cabinet size 320 x 160 x 48 mm (unboxed)
- Aluminium alloy, die-cast
- Holds one 320 x 160 mm module
- Net weight 0.72 kg excluding module and PSU
- Hoisting and fixed installation
- Two locating pins supplied
Suited to slim indoor signage, ticker strips and small format displays where the wall is built one module at a time. The cabinet suits 320 x 160 mm indoor modules from Qiangli, Dahua FeuVision and MEIYAD, and can be driven by Colorlight receiving cards from Lumina's stock.
Ex-stock Mumbai, delivered across India by Lumina Display Systems.
Specifications
Technical Specifications
- Material:Aluminum Alloy (Die-cast)
- Module Size:320 x 160 mm
- Cabinet Size (Unboxed):320 x 160 x 48 mm
- Module Qty (per Cabinet):1 pc
- Net Weight (excl. module and PSU):0.72 kg
- Operating Environment:Indoor
- Installation Method:Hoisting & Fixed Installation
- Standard Accessories:Locating Pins (2pcs) / Spring Locks or Captive Screws (optional) / Connector / Pressing Strips
- Colour:Black
