Aluminium Diecast Indoor 320x160K Lot1

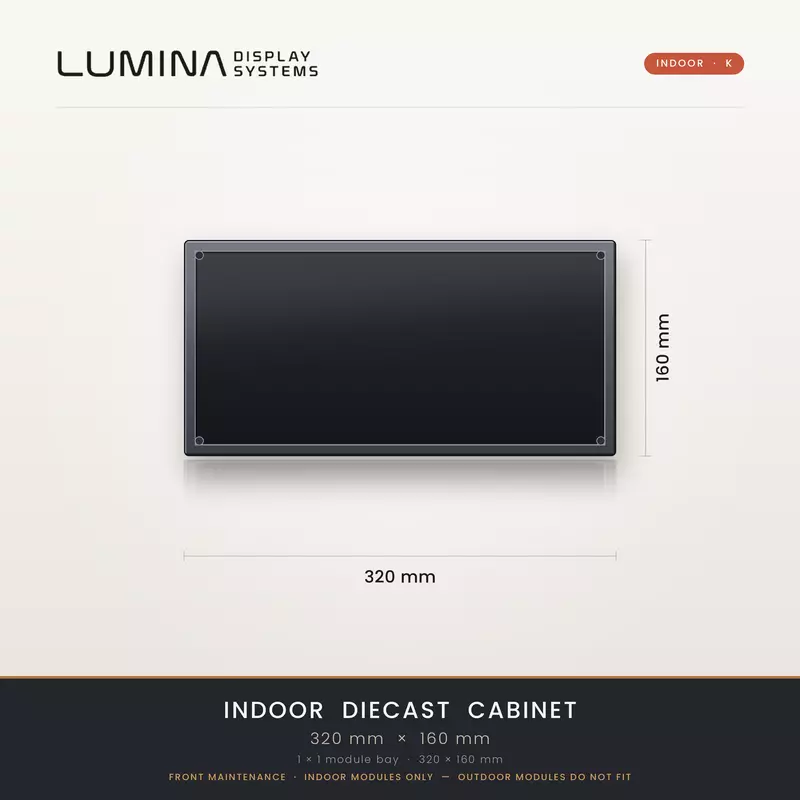

Aluminium alloy diecast indoor cabinet in the K pattern, 320 x 160 x 48 mm, holding one 320 x 160 mm module. Net weight 0.72 kg, front service, two locating pins included.
Non-returnable
₹1,100.00
Share :
Product Details
The 320 x 160K is the K-pattern single-module indoor cabinet from Lumina's lot 1 diecast stock. It shares the 320 x 160 x 48 mm envelope and 0.72 kg weight of the H pattern, differing in casting details, so check the pattern letter when matching to existing cabinets. It is front serviceable and ships with two locating pins for alignment.
Key details
- Cabinet size 320 x 160 x 48 mm (unboxed)
- Aluminium alloy die-cast body
- One 320 x 160 mm module per cabinet
- Net weight 0.72 kg excluding module and PSU
- Indoor, hoisting and fixed installation
- Locating pins, 2 pcs, included
Intended for integrators building narrow indoor displays or extending a wall already built with K-pattern cabinets. It takes 320 x 160 mm indoor modules from the brands Lumina stocks and works with Colorlight receiving cards and CZCL power supplies.
Ex-stock Mumbai, delivered across India by Lumina Display Systems.
Specifications
Technical Specifications
- Material:Aluminum Alloy (Die-cast)
- Module Size:320 x 160 mm
- Cabinet Size (Unboxed):320 x 160 x 48 mm
- Module Qty (per Cabinet):1 pc
- Net Weight (excl. module and PSU):0.72 kg
- Operating Environment:Indoor
- Installation Method:Hoisting & Fixed Installation
- Standard Accessories:Locating Pins (2pcs) / Spring Locks or Captive Screws (optional) / Connector / Pressing Strips
- Colour:Black
