Aluminium Diecast Indoor 640x480K Lot1

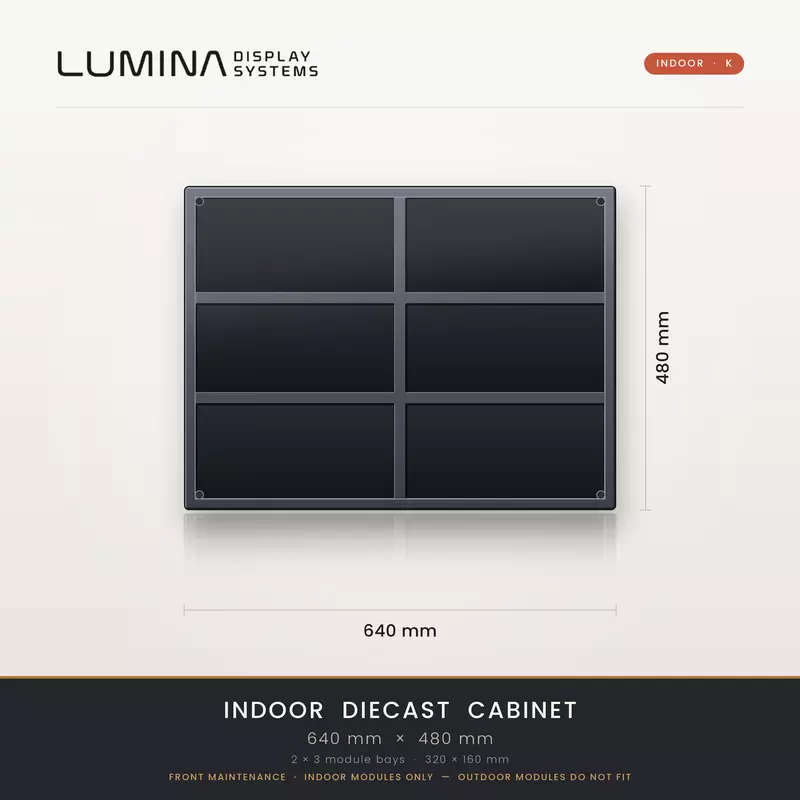

Aluminium alloy diecast indoor cabinet, 640 x 480 x 48 mm, holding six 320 x 160 mm modules. Net weight 2.8 kg without modules and PSU, front serviceable, supplied with two locating pins.
Non-returnable
₹3,100.00
Share :
Product Details
The 640 x 480K is the six-module indoor cabinet in Lumina's lot 1 K-pattern diecast stock. Cast in aluminium alloy at 48 mm depth and weighing 2.8 kg bare, it gives a standard 4:3 building block for indoor walls that is far lighter than a fabricated steel cabinet of the same size. Modules are front serviceable and two locating pins are included for alignment.
Key details
- Cabinet size 640 x 480 x 48 mm (unboxed)
- Aluminium alloy, die-cast
- Holds six 320 x 160 mm modules
- Net weight 2.8 kg excluding module and PSU
- Indoor, hoisting and fixed installation
- Locating pins, 2 pcs, included
A practical choice for conference rooms, lobbies, retail and control-room walls. It accepts 320 x 160 mm indoor modules from Qiangli, Dahua FeuVision and MEIYAD and pairs with Colorlight receiving cards and CZCL power supplies. Match the K pattern when extending an existing lot 1 wall.
Ex-stock Mumbai, delivered across India by Lumina Display Systems.
Specifications
Technical Specifications
- Material:Aluminum Alloy (Die-cast)
- Module Size:320 x 160 mm
- Cabinet Size (Unboxed):640 x 480 x 48 mm
- Module Qty (per Cabinet):6 pcs
- Net Weight (excl. module and PSU):2.8 kg
- Operating Environment:Indoor
- Installation Method:Hoisting & Fixed Installation
- Standard Accessories:Locating Pins (2pcs) / Spring Locks or Captive Screws (optional) / Connector / Pressing Strips
- Colour:Black
