Aluminium Diecast 320 x 160 (8 magnets)

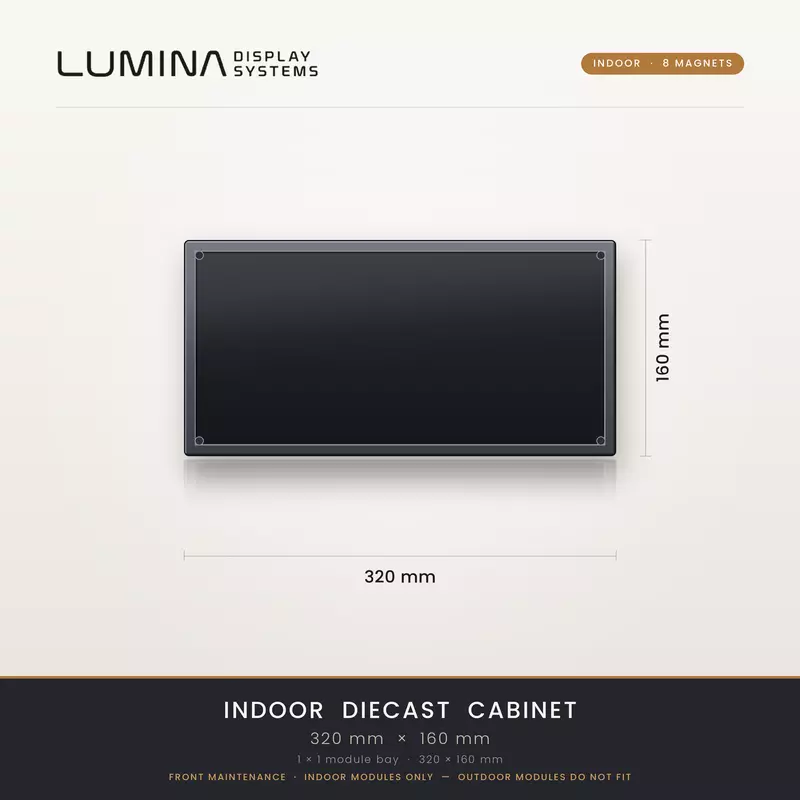

This is the smallest unit in Lumina's indoor diecast range: a 320 x 160 mm aluminium die-cast cabinet that carries one standard 320 x 160 mm LED module. Eight magnets hold the module against the cabinet face, so the module lifts straight off from the front for service. There is no bezel, which keeps the pixel gap between adjacent cabinets consistent when you tile several of them into a wall.

Key details

• Cabinet size 320 x 160 mm, aluminium die-cast body
• Takes one 320 x 160 mm LED module
• Eight-magnet module mounting for front service
• No bezel, so cabinets butt together cleanly
• Indoor use

Suited to integrators building slim indoor video walls, reception displays and narrow signage strips where a full-height cabinet would be wasteful. The multi-hole magnet layout accepts 320 x 160 mm indoor modules from the usual brands, so you can pair it with Qiangli, Dahua FeuVision or MEIYAD modules from Lumina's stock. Ask us for the matching receiving card and power supply if you want a complete kit.

Ex-stock Mumbai, delivered across India by Lumina Display Systems.
