Colorlight AX06 AI Media Station
Colorlight AX06 AI Media Station — an all-in-one Android 13 media player and LED control unit built for multifunctional classrooms, conference rooms, exhibition halls, and banquet halls. It offers 6 Gigabit Ethernet outputs supporting up to 3.9 million pixels, Dual 4K decoding, an 8-core AI processor, WiFi 6 and Bluetooth 5.2 connectivity, and support for wireless screen casting, infrared touch whiteboards, and meeting peripherals — all in a fan-less, ultra-quiet design.
Out of stock
₹61,600.00
Share :
Product Details
Product Overview
The Colorlight AX06 is an AI Media Station built on Android 13, combining an all-in-one media player with an LED display controller. It is designed for multifunctional classrooms, conference rooms, exhibition halls, lecture halls, and banquet halls, supporting document presentation, video playback, multi-terminal wireless screen casting, infrared touch whiteboards, cameras, microphones, and meeting systems, all in a fan-less, ultra-quiet design that can be wall-mounted or placed on a desktop.
System & Performance
• Processor: 8-core chip with 8nm advanced process technology
• Storage: 4GB DDR + 64GB EMMC
• Operating System: Android 13, supporting third-party app installations
• Video Decoding: Up to Dual 4K decoding, H.264/H.265/AV1/VP9/AVS2 compliant
• Colorlight Infi-bit grayscale extension technology
• Loading Capacity: Up to 3.9 million pixels via 6 Gigabit Ethernet outputs, with a maximum width of 7680 pixels
Smart Playback & Control
• Infrared/Bluetooth dual mode remote control
• File browsing and document editing with remote control, mouse, or keyboard
• Multi-platform software control (WebUI, PC PlayerMaster, ColorlightCloud CMS, Mobile LED Assistant)
• Playlist assets including videos, images, text, time, weather, and HDMI signals
• Support for wireless display, multi-terminal screen casting, and reverse control
• Compatible with generic infrared touch frames for electronic whiteboards
• Meeting systems compatible with meeting peripherals (third-party meeting apps required)
Connectivity & Interfaces
• Video Inputs: 2x HDMI 1.4 (1920x1200@60Hz, YUV444, HDCP 1.4/2.2)
• Video Output: 1x HDMI 2.0 (3840x2160@60Hz, YUV444), 1x USB-C DP Alt Mode
• Network Outputs: 6x RJ45 Gigabit Ethernet ports for screen receivers
• USB: USB 2.0, USB 3.0, and USB-C ports for mouse, keyboard, USB-disk, and camera
• Wireless: WiFi 6 (dual-band, dual-mode AP/STA), Bluetooth 5.2
• Audio: 1x SPDIF output (PCM/Dolby/DTS), 1x 3.5mm audio jack (HiFi)
• Control: RS232 (4-pin Phoenix), 6-pin Phoenix (IR IN, I/O, RELAY, GND), Sensor port for temperature/humidity/brightness monitoring

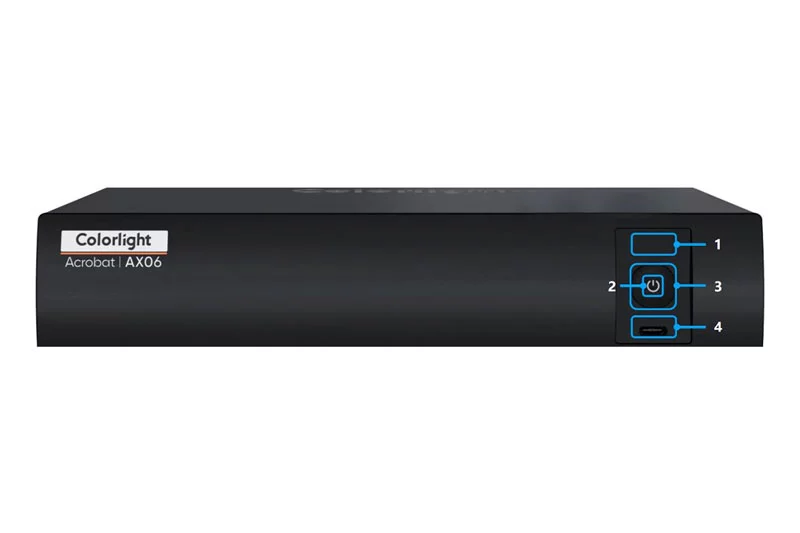

• Front Panel: Infrared receiver, status LEDs, power switch, USB Type-C (debug/display, mouse/keyboard/USB-disk/dongle, USB-C monitor)
Environmental & Power
• Power Supply: DC 12V/3A
• Power Consumption: 28W
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Operating Humidity: 0%RH-85%RH, non-condensing
Dimensions
• Device Dimensions (W x H x D): 220mm x 188mm x 47mm (excluding antennas and mounting bracket)
• Package Dimensions (W x H x D): 332mm x 245mm x 115mm
Manufacturer: Colorlight
Specifications
Technical Specifications
- Memory:4GB DDR + 64GB EMMC
- Loading Capacity:3900000 pixels | max width 7680
- Supported Receiver:All Colorlight receivers
- Video Format Support:H.264 / H.265 / AV1 / VP9 / AVS2 (Dual 4K decoding)
- Audio Format Support:PCM / Dolby / DTS (SPDIF) / HiFi stereo (3.5mm)
- Connectivity:LAN / WiFi 6 / Bluetooth 5.2
- Front Panel Ports:Infrared receiver / Status LEDs / Power switch / USB Type-C
- Power Input:DC 12V/3A
- Rated Power:28W
- Operating Temperature:-20°C to 60°C (-4°F to 140°F)
- Operating Humidity:0-85% non-condensing
- Dimensions (Unboxed):220 × 188 × 47 mm
- Rear Panel Ports:DC12V/3A in / Ethernet / 2x USB-A / RS232 / IR-IO-Relay-GND / Sensor / 2x HDMI 1.4 In / HDMI 2.0 Out / Audio 3.5mm / SPDIF / BT & WiFi antennas / 6x Gigabit Port
- Operating System:Android 13
