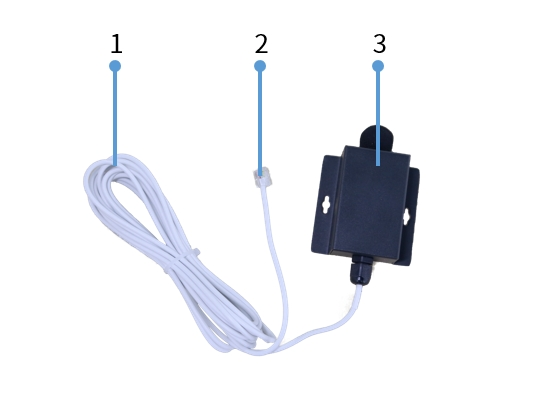

Colorlight SSR-NOISE Noise Sensor

The SSR-NOISE is a decibel-level noise sensor from Colorlight built around a genuine imported sound sensor and multi-point factory calibration for accurate, direct-reading noise measurements. Its independently encapsulated stainless steel probe and fully shielded control board make it easy to integrate into other enclosures while resisting interference, and it connects via RJ11 to Colorlight's A35, A60, A100 and A200 players to enable noise-triggered brightness adjustment.

• Measurement Range: 30-120dB

• Frequency Range: 20Hz-12.5kHz

• Maximum Error: 0.5dB

• Reaction Time: Less than 3s

• Stability: Less than 2% over service life

• Power Supply: 5V DC or 12V DC

• Power Consumption: 0.1W (average)

• Output Interface: RJ11

• Interface Specifications: 6P2C

• Operating Temperature: -20°C to 70°C

• Relative Humidity: 25%-90%

• Atmospheric Pressure: 65KPa-108KPa

• Storage Conditions: -40°C to 70°C (-40°F to 158°F)

• Protection Rating: IP20

• Dimensions: 78.0 x 77.3 x 32.1mm

• Weight: 50g

• Standard Cable Length: 5 meters

• Compatible Players: A35, A60, A100, A200 (SENSOR port)

• Manufacturer: Colorlight Cloud Tech Ltd
