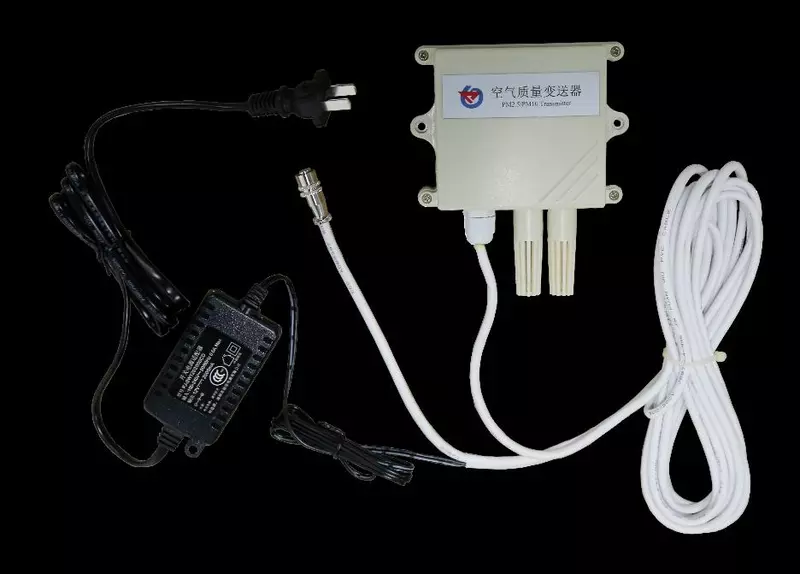

Colorlight SSR-PM Air Quality Sensor

Name: Colorlight SSR-PM Air Quality Sensor
Brand: Colorlight
SKU: ACC-CLT-SSR-PM
Price: 26000.0 INR
Availability: OutOfStock

Colorlight SSR-PM air quality sensor — an industrial PM2.5/PM10 particle-concentration sensor using laser-scattering with dual-frequency data acquisition and auto-calibration (0-1000ug/m³, ±10% accuracy). Outputs over ModBus-RTU via RS485 to the monitor extension interface of a multi-function card, making it easy to add air-quality monitoring to LED displays, weather stations, and indoor spaces. Runs on a stable 12V switching power adapter (100-240V AC input).

Out of stock

₹26,000.00

Product Details

Product Overview

The SSR-PM is an industrial particle-concentration sensor from Colorlight that measures PM2.5 and PM10 simultaneously using laser-scattering with a unique dual-frequency data acquisition and auto-calibration algorithm. Advanced laser anti-attenuation technology ensures long-term stability, making it suitable for outdoor weather stations, dust monitoring, libraries, archives, and industrial factories.

Sensor Specifications

• Accuracy: ±10% (@500ug/m³, 60%RH, 25°C)

• Measuring Range (PM2.5): 0-1000ug/m³

• Measuring Range (PM10): 0-1000ug/m³

• Resolution: 1ug/m³

• Response Speed: Less than 90s

• Warm-up Time: Less than 2min

Power & Interface

• Operating Voltage: DC 12V

• Adapter Input: AC 100-240V, 50/60Hz, 0.6A MAX

• Power Consumption: 0.5W

• Communication Protocol: ModBus-RTU

• Interface: RS485 (connects to multi-function card monitor extension port)

Environmental

• Operating Environment: -20°C to 60°C, 0%RH-95%RH

Physical & Installation

• Dimensions: 110 x 85 x 44mm

• Manufacturer: Colorlight Cloud Tech Ltd
