Colorlight VX6 Video Processor
Colorlight VX6 LED video controller - a 1U 4K video processor and sending unit that loads up to 3.93 million pixels (max 16384x8192) across 6x Gigabit Ethernet and 2x 10G optical fibre ports, with HDMI 2.0, HDMI 1.4, dual DVI and 3G-SDI inputs, HDR, Genlock sync and three switchable working modes for rental, stage, broadcast and film production.
₹93,220.00
Share :
Product Details
Product Overview

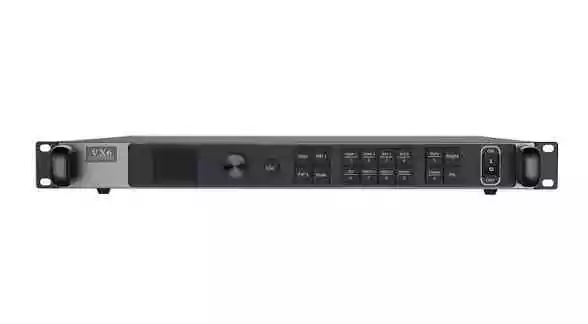

The Colorlight VX6 is a 1U professional LED video controller that combines UHD image processing with LED display sending in a single chassis. It accepts 4K and 2K video sources and drives up to 3.93 million pixels across six Gigabit Ethernet ports and two 10G optical fibre ports, making it suited to medium and high-end rental, stage control, broadcast and film production work.
Key Features
Loading capacity: 3930000 pixels | max 16384px wide x 8192px high
4096x2160@60Hz input support with 8bit and 10bit video processing
Three working modes: video processor, fiber optic transceiver and bypass
Three layers with independent size and position adjustment, plus HDR display
Low latency, with no latency achievable in bypass mode, Genlock sync with loop through
Ethernet port backup and controller redundancy
Input and Output Interfaces
Video Inputs: 1x HDMI 2.0, 1x HDMI 1.4 (IN and LOOP), 2x DVI (DVI 2 IN and LOOP), 1x 3G-SDI (IN and LOOP)
Ethernet Outputs: 6x Gigabit Ethernet, 650000 pixels per port at 8bit 60Hz
Fibre: 2x 10G SFP+ ports. Fiber 1 is self-adaptive input or output, Fiber 2 is output only for copy or backup of the 6 Ethernet ports
Preview: 1x HDMI 1.3 output for preview or video output
Control: LAN (TCP/IP), RS232, USB IN and USB OUT for cascading, U-Disk for receiving card configuration and firmware upgrading
Audio: HDMI audio input, audio output via multi-function card
Video Processing and Colour
Broadcasting-level scaling with signal cropping and seamless switching
Frame rate 23.98Hz to 240Hz on input and output
HDCP 2.2 on HDMI 2.0, HDCP 1.4 on HDMI 1.4 and DVI
Hue, saturation, contrast and brightness compensation, brightness adjustment by Ethernet port group, accurate colour temperature and individual RGB adjustment
Front Panel Controls
LCD display, knob, ESC key, layer keys (Main, PIP 1, PIP 2), Full Screen auto-scaling, source keys (HDMI 1, HDMI 2, DVI 1, DVI 2, SDI, Fiber 1-1, Fiber 1-2, Mosaic), Preset, Bright, Freeze, FN and power switch
Physical and Environmental
Dimensions (unboxed): 482.6 x 44.0 x 418.7 mm, 1U | Net Weight: 4.8 kg
Packing size: 550.0 x 115.0 x 490.0 mm
Power Input: AC 100-240V 50/60Hz | Rated Power: 80W
Operating Temperature: -20C to 50C (-4F to 122F) | Humidity: 0-90% RH non-condensing
Storage Temperature: -30C to 80C (-22F to 176F)
Manufacturer: Colorlight Cloud Tech Ltd
Specifications
Technical Specifications
- Signal Sources (Input):1×HDMI2.0 + 1×HDMI1.4 (IN&LOOP) + 2×DVI (DVI2 LOOP) + 1×3G-SDI (IN&LOOP) + 1×10G fibre
- Input Resolution:max 4096×2160@60Hz
- Output Loading Capacity:3.93 million pixels
- Max Width / Height:16384px width / 8192px height
- Ethernet Output Ports:6× Gigabit Ethernet + 2× 10G optical fibre
- Audio I/O:HDMI audio input + audio output via multi-function card
- Control Interface:LAN (TCP/IP) + RS232 + USB IN/OUT (cascading)
- Chassis Size (Unboxed):482.6 × 44.0 × 418.7 mm (1U)
- Chassis Size (Boxed):550.0 × 115.0 × 490.0 mm
- Net Weight:4.80 kg
- Power Input:AC100-240V, 50/60Hz
- Rated Power:80W
- Operating Temperature:-20°C to 50°C (-4°F to 122°F)
- Operating Humidity:0%RH-90%RH non-condensing
