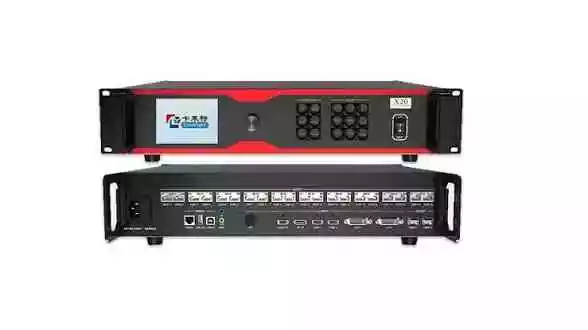

Colorlight X20 Video Processor
Colorlight X20 LED video processor — a 2U controller with 4K DP1.2 and HDMI2.0 inputs, 13.00 million pixels of loading capacity across 20x 1G Ethernet ports or 2x 10G fibre ports, 6-window layering with roaming and scaling, and 16 preset scenes.
₹175,000.00
Share :
Product Details
Product Overview
The Colorlight X20 is a 2U rack-mount LED video processor built for large-format video walls and live events. It accepts 4K signals over DP1.2 and HDMI2.0 plus 2K signals over HDMI1.4 and DVI, and drives up to 13.00 million pixels from a single unit through 20 Gigabit Ethernet ports or 2 ten-Gigabit optical fibre ports. Layer management, colour processing and 16 recallable preset scenes make it suited to rental, broadcast and fixed-installation screens alike.
Video Inputs
• 4K inputs: 1x DP1.2, 1x HDMI2.0 | Maximum 4096x2160@60Hz, pixel clock up to 600MHz
• 2K inputs: 2x HDMI1.4, 2x DVI | 1920x1200@60Hz, pixel clock up to 165MHz
• Custom resolution: up to 8192 pixels wide or high on 4K inputs, 4096 pixels on 2K inputs
• EDID settings supported on all inputs | Audio embedded on HDMI and DP inputs
Outputs & Loading Capacity
• 20x 1G Ethernet outputs | 0.65 million pixels per port, 13.00 million pixels total
• Maximum 16384 pixels in width or 8192 pixels in height
• Recommended maximum Cat 5e cable run: 100 metres | Redundant backup supported
• 2x 10G optical fibre ports | FIBER 1 drives PORT 1-10, FIBER 2 drives PORT 11-20
• Dual LC single-mode fibre, 1310nm wavelength, 2km transmission (10G optical module purchased separately)
Processing Functions
• Up to 6 windows with window overlay | Window roaming and free scaling
• Free cropping and seamless switching
• Precise colour management for colour gamut adjustment
• Brightness and colour temperature adjustment
• Better Grayscale at Low Brightness for improved low-light greyscale performance
• Save and recall 16 preset scenes
• 3D display support (3D emitter and active glasses purchased separately)
Audio & Control
• Audio: 1x 3.5mm input, 1x 3.5mm output with HDMI and DP audio decoding
• LAN: RJ45 port for TCP/IP control over local network
• RS232: RJ11 (6P6C) port for central control systems
• USB: USB2.0 Type B for PC debugging, USB2.0 Type A for cascading output
• Android app control for mobile devices
Power & Physical
• Power input: AC100-240V, 50/60Hz, built-in fuse
• Chassis: 2U rack-mount | Front panel LCD, knob and function/mode keys
• Unboxed dimensions: 482.6 x 88.0 x 414.1mm (19.0" x 3.5" x 16.3") | Net weight: 4.8kg
• Boxed dimensions: 525.0 x 150.0 x 495.0mm | Gross weight: 6.6kg
Manufacturer: Colorlight Cloud Tech Ltd.
Specifications
Technical Specifications
- Signal Sources (Input):1×DP1.2 + 1×HDMI2.0 + 2×HDMI1.4 + 2×DVI
- Input Resolution:max 4096×2160@60Hz
- Output Loading Capacity:13.00 million pixels
- Max Width / Height:16384px width / 8192px height
- Ethernet Output Ports:20× Gigabit Ethernet + 2× 10G optical fibre
- Audio I/O:1×3.5mm in + 1×3.5mm out (HDMI/DP audio decoding)
- Control Interface:LAN (TCP/IP) + RS232 + USB IN/OUT (cascading) + Android app
- Chassis Size (Unboxed):482.6 × 88.0 × 414.1 mm (2U)
- Chassis Size (Boxed):525.0 × 150.0 × 495.0 mm
- Net Weight:4.80 kg
- Gross Weight:6.60 kg
- Power Input:AC100-240V, 50/60Hz
