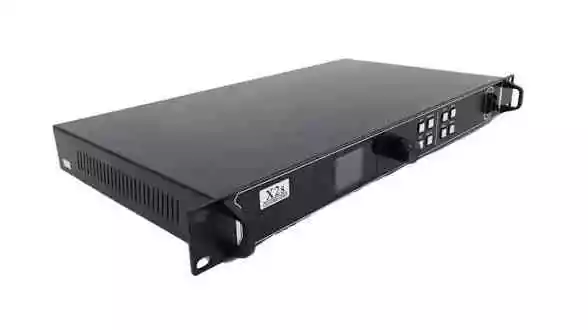

Colorlight X2s Video Processor
Colorlight X2s professional LED video controller — 1U rack-mount processor with 1× HDMI 1.4 and 2× DVI inputs, 2× Gigabit Ethernet outputs driving up to 1.31 million pixels (4096 max width / 2560 max height), seamless source switching, arbitrary scaling and cropping, HDCP, and USB cascading of up to 64 units.
Non-returnable
₹11,500.00
Share :
Product Details
Product Overview
X2s is a professional LED video controller with powerful video signal receiving and processing, HD digital inputs up to 1920×1200@60Hz, and 2× Gigabit Ethernet outputs for LED displays up to 4096 px wide or 2560 px tall. Single-device or dual-device redundant backup, brightness and colour-temperature adjustment, improved low-brightness grayscale, and a front-panel LCD with knob and function keys. Ideal for small LED displays.
Video Inputs & Outputs

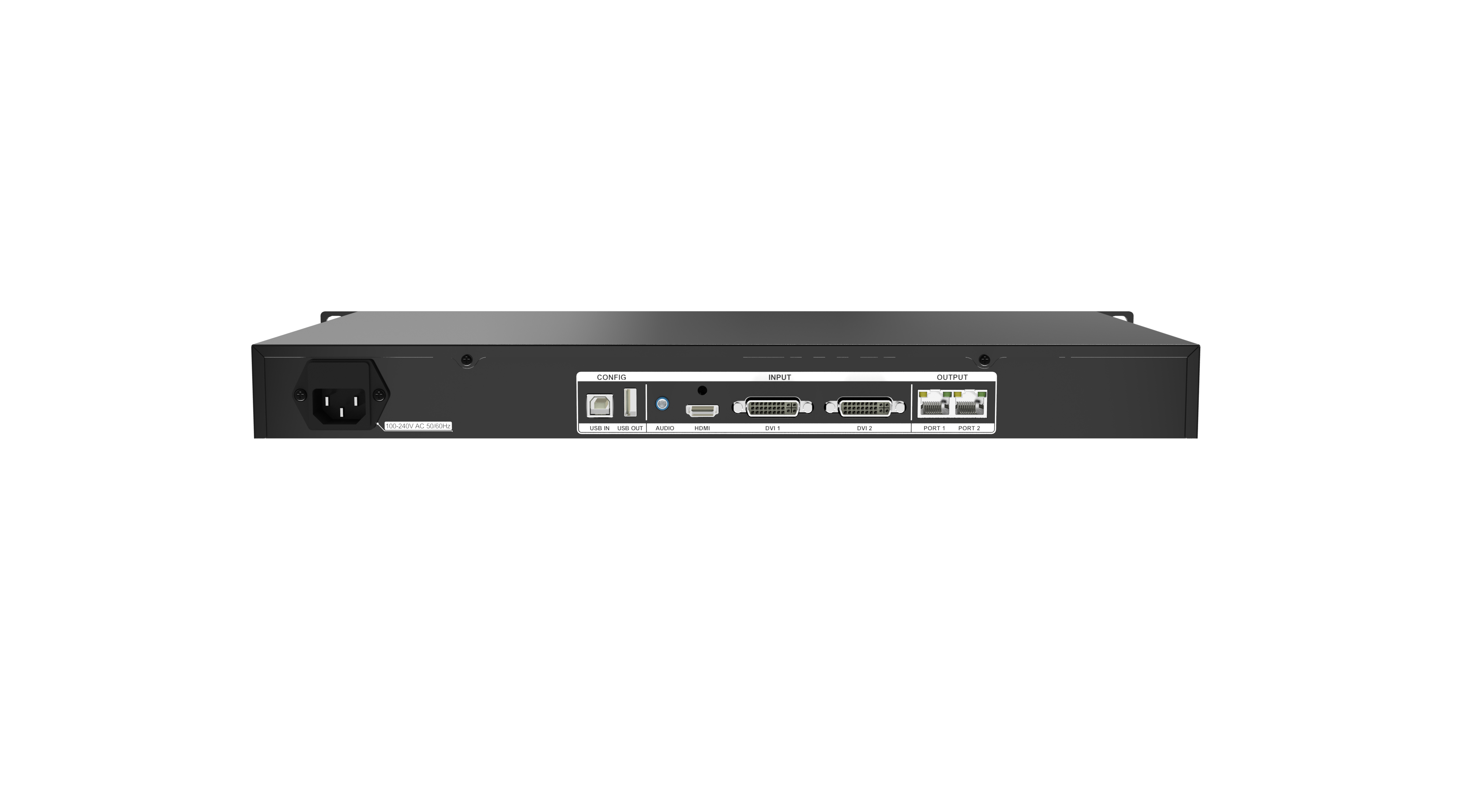

• Inputs: 2× DVI, 1× HDMI 1.4, Audio (with optional multifunction card) | Outputs: 2× Gigabit Ethernet (RJ45)
• Load capacity: 1.31 million pixels | Max width: 4096 px | Max height: 2560 px
• Max input resolution: 1920×1200@60Hz | Customised resolutions supported
Signal Format
• DVI: VESA standard, HDCP 1.4 | HDMI: HDMI 1.4, HDCP
• Colour depth: 8-bit | Colour space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
• Frame rates: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.97 / 60 Hz
Control & Features
• USB IN: PC configuration | USB OUT: cascade up to 64 devices
• Seamless switching, arbitrary cropping and scaling of video source | Screen deviation | Single/dual device redundant backup
• Brightness and colour temperature adjustment | Improved grayscale at low brightness | Audio output via multifunction card
• Front panel: LCD, knob, OK / ESC / BRIGHT / BLACK / PART function keys, DVI 1 / DVI 2 / HDMI source keys, power switch
Electrical & Environment
• Input voltage: AC 100–240V, 50/60Hz, built-in fuse | Power consumption: 10W
• Operating temperature: -20°C to 60°C | Operating humidity: 0–80% RH, non-condensing
• Storage temperature: -30°C to 80°C | Storage humidity: 0–90% RH, non-condensing
Physical
• Form factor: 1U rack-mount | Device size (W×H×D): 482.6 × 44 × 262 mm | Net weight: 2 kg
• Packing size (W×H×D): 523 × 95 × 340 mm
• Manufacturer: Colorlight Cloud Tech Ltd, Shenzhen, China | Datasheet version: V1.3
Specifications
Technical Specifications
- Signal Sources (Input):2×DVI + 1×HDMI1.4
- Input Resolution:max 1920×1200@60Hz
- Output Loading Capacity:1.31 million pixels
- Max Width / Height:4096px width / 2560px height
- Ethernet Output Ports:2× Gigabit Ethernet
- Audio I/O:Audio input via optional multi-function card
- Control Interface:USB IN/OUT (cascading)
- Chassis Size (Unboxed):482.6 × 44.0 × 262.0 mm (1U)
- Chassis Size (Boxed):523.0 × 95.0 × 340.0 mm
- Net Weight:2.00 kg
- Power Input:AC100-240V, 50/60Hz
- Rated Power:10W
- Operating Temperature:-20°C to 60°C (-4°F to 140°F)
- Operating Humidity:0%RH-80%RH, non-condensing
