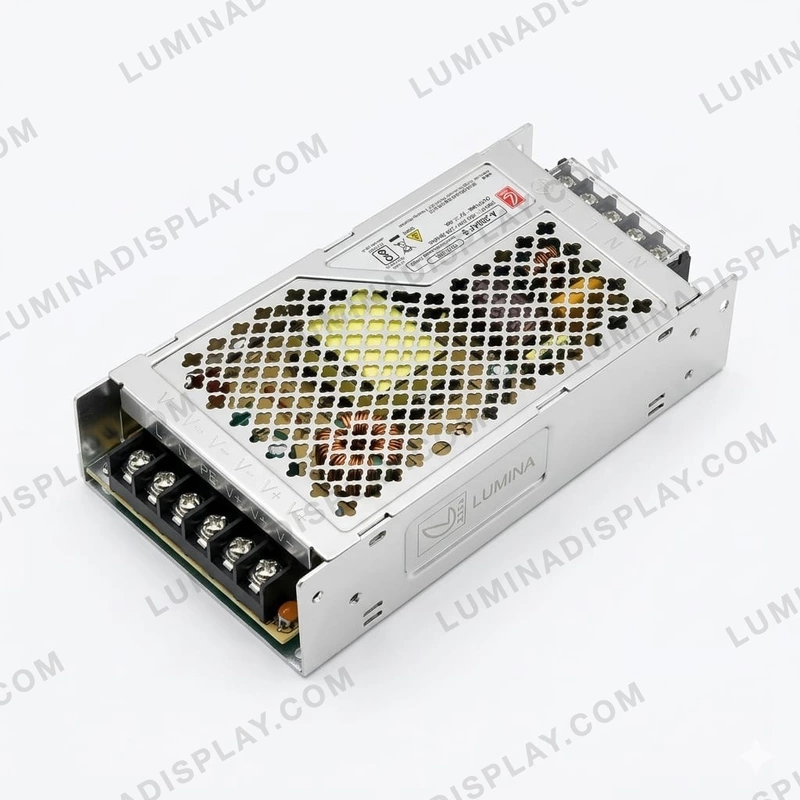

Product OverviewCZCL 40A/200W Ultra-Thin LED Display Power Supply (LDK-200-X Series) is an AC/DC switching power supply purpose-built for driving LED display panels, cabinets, and video walls. It converts 180-264VAC mains input into a stable 5Vdc output at up to 40A (200W), using a narrow AC input design in an ultra-thin housing that relies on natural convection cooling with an auxiliary heat sink, avoiding the need for a fan. The unit complies with IEC/EN/UL 62368-1 and GB4943.1 safety standards for high reliability and stability.
Electrical Specifications
• Output: 5Vdc / 0-40A / 200W
• Input Voltage: 180-264VAC, 47-63Hz
• Efficiency: up to 88% (Typ. at 230VAC)
• Ripple and Noise: 200mV max
• Output Voltage Tolerance: ±3%
Protection and Reliability
• Input Under-Voltage Protection: output shuts off below the protection threshold and auto-recovers once input voltage is restored
• Overload Protection: 110%-160% Io, hiccup mode, auto-recovery
• Short Circuit Protection: hiccup mode, auto-recovery
• MTBF: 300000 hrs at 25C
• Safety Certification: UL/CUL, CE, CB, CQC (IEC/EN/UL 62368-1, GB4943.1)
Construction and Cooling
• Heat Dissipation: natural conduction cooling with auxiliary heat sink, no fan
• Operating Temperature: -30C to +70C (derated above 50C ambient)
• Storage Temperature: -40C to +85C
• Operating Humidity: 20%RH-90%RH, non-condensing
Dimensions and Weight
• Dimensions: 190 x 81 x 30mm (L x W x H)
• Net Weight: 350g
Warranty and Origin
• Warranty: 2 years
• Recommendation: reserve a 30% power margin over actual load for extended service life
• Origin: Imported from China (Changzhou Chuanglian Power Supply Technology Corporation)
