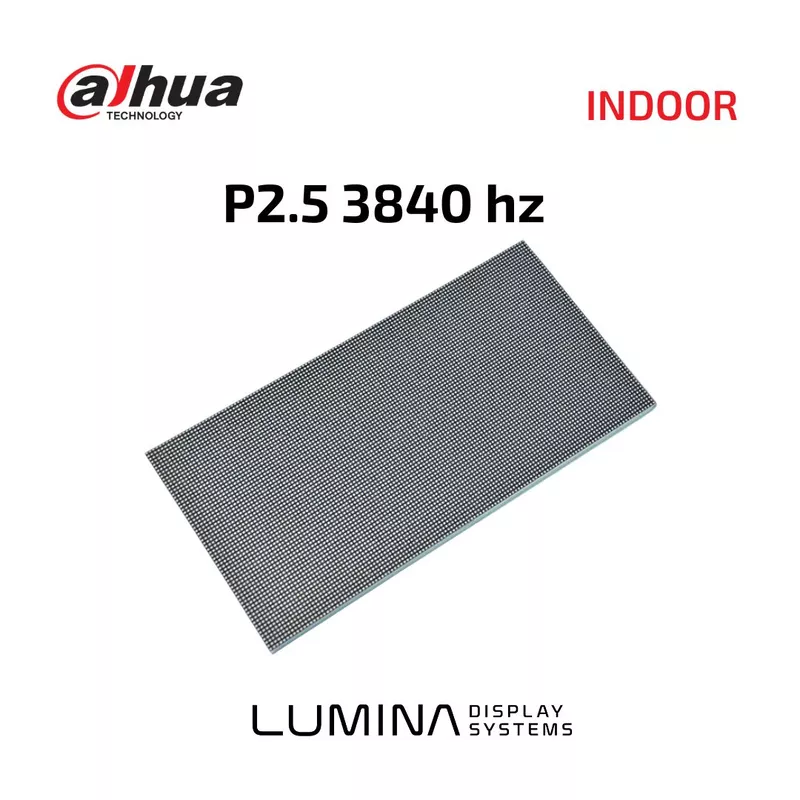

LED Modules Dahua FeuVision IFS-LIA2.5S-C - P2.5 Indoor SMD LED Module
Dahua FeuVision IFS-LIA2.5S-C - P2.5 Indoor SMD LED Module
Dahua FeuVision IFS-LIA2.5S-C indoor LED display module — a 2.5mm pixel pitch, SMD2121 module built for high-refresh (3840Hz) indoor video walls, with 550 nits brightness, 140°/130° viewing angle, and precise current-driving technology for uniform, flicker-free image quality.
Non-returnable
₹1,350.00
Share :
Product Details
Product Overview
The IFS-LIA2.5S-C is a P2.5 indoor full-color LED display module from Dahua FeuVision, built with SMD2121 LED chips for high-refresh (3840Hz) and high-grayscale (12-14 bit) video wall applications. Precise current-driving technology keeps channel-to-channel and chip-to-chip error under ±2.0%, delivering a 4000:1 contrast ratio and a viewing angle above 140°, with high reliability and long lifespan, ideal for control rooms, broadcast studios, retail displays, and cost-effective indoor signage.
Module Specifications
• Product Model: IFS-LIA2.5S-C | Module Size: 320mm(W) x 160mm(H)
• Pixel Pitch: 2.5mm | Pixel Density: 160,000 dots/m²
• Pixel Composition: SMD2121 | Configuration: 1R1G1B
• Module Resolution: 128 x 64 (8,192 dots) | Module Weight: 0.42kg ±0.01
Display Performance
• Max Brightness: 550 nits | Viewing Angle: 140°(H)/130°(V)
• Brightness/Colorful Evenness: ≥95% | Contrast Ratio: 4000:1
• Refresh Rate: ≥3840Hz | Grayscale: 12-14 bit
• Driving Method: Constant Current, 1/32 Scanning
Electrical Parameters
• Module Input Voltage: DC 4.2V-5.0V | Max Current for Module: ≤4A
• Max Power Consumption for Module: ≤20W | Frequency: ≥50/60Hz
Environmental & Lifespan
• Working Temperature/Humidity: -10℃ to 40℃ / 10%-65%RH
• Storage Temperature/Humidity: -20℃ to 60℃ / 10%-65%RH
• Waterproof/Dust-proof: Cabinet IP30, Module IP30 (Indoor Use Only)
Packaging & Signal Interface
• Packing: 40pcs Module / 20pcs Power Cable / 40pcs Flat Cable per carton
• Signal Interface: HUB75
Manufacturer: Dahua Technology / FeuVision
Specifications
Technical Specifications
- Pixel Pitch:2.5mm
- Pixel Density:160000 dots/m²
- Configuration:1R1G1B SMD2121
- Module Size:320 x 160 mm
- Module Weight:0.42 kg
- Resolution:128 x 64 (8192 dots)
- Input Voltage:DC 4.2V-5.0V
- Max Current:4A
- Power Consumption:Max 20W
- Brightness:550 cd/m²
- Refresh Rate:3840Hz
- Grayscale:12-14 bit (RGB)
- Viewing Angle:140°(H) / 130°(V)
- Operating Temperature:-10℃ to 40℃ (Working) / -20℃ to 60℃ (Storage)
- Signal Interface:HUB75
- Scan:1/40 Scan
