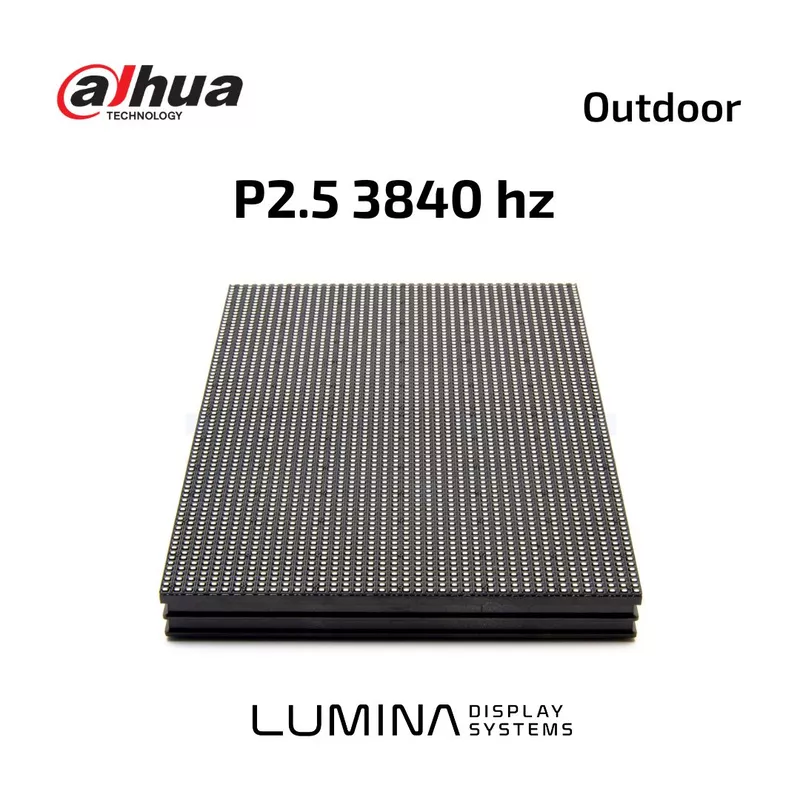

Dahua FeuVision IFS-LOA2.5S-C - P2.5 Outdoor SMD LED Module

The Dahua FeuVision IFS-LOA2.5S-C is a 2.5 mm pixel pitch outdoor full-colour LED display module from the FeuVision L Series. Built on SMD1415 red, green and blue LED packages with precise constant-current regulation, it delivers 5000+ nits of brightness, a 3840 Hz refresh rate and 12-14 bit grayscale for flicker-free, camera-friendly video reproduction on outdoor screens. Channel-to-channel and chip-to-chip error is held within 2.0 percent, eliminating low-grayscale non-uniformity, colour shift and module-to-module colour cast. Each 320 x 160 mm module carries a 128 x 64 pixel array at 160000 dots per square metre, and mounts to magnetic steel kits or standard outdoor cabinets for wall-mounted or floor-mounted video walls, signage and DOOH installations.

• Product Model: IFS-LOA2.5S-C | Pixel Composition: SMD1415

• Pixel Pitch: 2.5 mm | Module Resolution (W x H): 128 x 64

• Pixel Density: 160000 dots/sq.m | Module Size: 320 x 160 mm

• Module Weight: 0.49 kg | Module Input Voltage: 4.5-5 V DC

• Max Current per Module: 8 A | Max Power Consumption per Module: 40 W

• Max Brightness: 5000 nits and above | Contrast Ratio: 5000:1

• Colour Temperature: 9500-13000 K adjustable

• Viewing Angle (H/V): 160 +/-10 degrees / 120 +/-10 degrees

• Brightness / Colour Evenness: 85% - 95%

• Refresh Rate: 3840 Hz | Frame Frequency: 60 Hz and above

• Colour Processing: 12-14 bit | Driving Method: Constant current, 1/16 scan

• Operating Temperature / Humidity: -10 to 40 degree C / 10%-60% RH

• Storage Temperature / Humidity: -20 to 60 degree C / 10%-65% RH

• Ingress Protection: IP30 (module and cabinet)

• Grounding resistance requirement: less than 10 ohm | Anti-static handling required during installation

• Magnetic steel kit mounting hole pattern: 297 x 137 mm outer, 245 x 85 mm inner

• Installation methods: wall-mounted or floor-mounted fixed steel structure

• Standard carton: 40 modules, 40 flat cables, 20 power cables

• Interface: HUB75 16-pin (R1/G1/B1 and R2/G2/B2 data, A/B/C/D row decoding, CLK, LAT, OE, GND)

• Signal chain: PC or video source > video splicing processor > sending box > receiving card > module

• Data cabling: Cat5e or above; optical fibre recommended beyond 100 m

• Manufacturer: Dahua Technology (FeuVision L Series)
