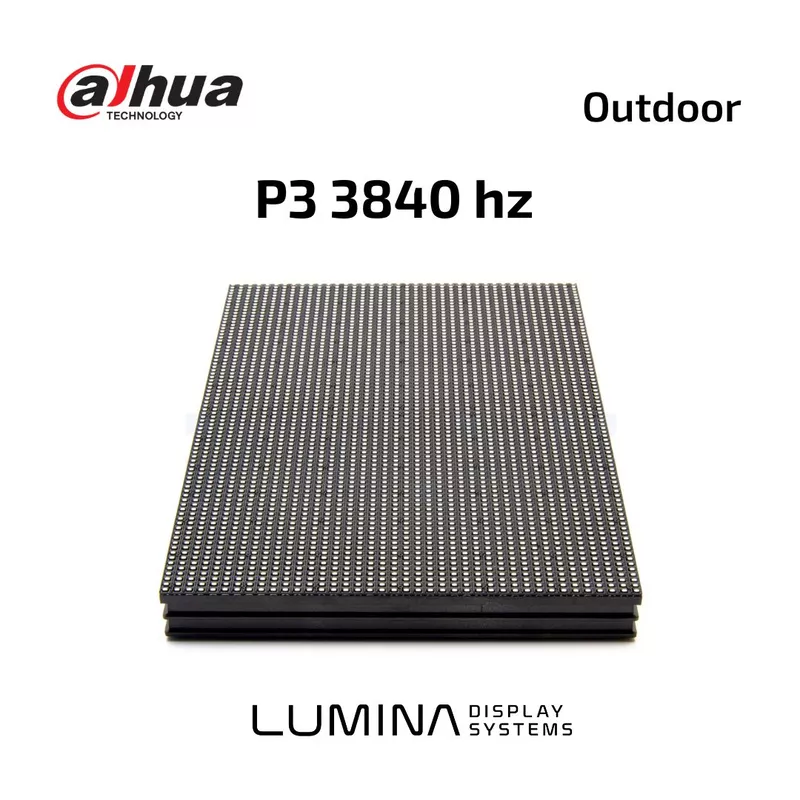

Dahua FeuVision IFS-LOA3S-C - P3.076 Outdoor SMD LED Module

The Dahua FeuVision IFS-LOA3S-C is a 320 x 160 mm outdoor full-colour LED display module from the FeuVision L Series, built on SMD1415 red, green and blue LED packages at a 3.076 mm pixel pitch. Each module carries 104 x 52 pixels for a density of 105625 dots/m2, driven by precise constant-current regulation with channel-to-channel and chip-to-chip error held under 2.0 percent. A 3840 Hz refresh rate paired with 12-14 bit greyscale processing gives a stable, flicker-free and grain-free image that holds up on camera, while peak brightness of 5000 nits keeps content readable in direct sunlight. It is intended for outdoor advertising screens, stadium and transport displays, building facades and fixed-install video walls viewed from roughly 3 metres and beyond.

• Product Model: IFS-LOA3S-C | Pixel Composition: SMD1415

• Pixel Pitch: 3.076 mm | Module Resolution: 104 x 52 pixels

• Pixel Density: 105625 dots/m2 | Module Size: 320 x 160 mm

• Module Weight: 0.49 kg | Input Voltage: 4.5-5 V DC

• Max Current per Module: 8 A | Max Power Consumption: 40 W

• Peak Brightness: 5000 nits | Contrast Ratio: 5000:1

• Colour Temperature: 9500-13000 K adjustable | Greyscale Processing: 12-14 bit

• Viewing Angle: 160 degrees +/-10 horizontal | 120 degrees +/-10 vertical

• Brightness and Colour Evenness: 85 to 95 percent

• Refresh Rate: 3840 Hz | Frame Frequency: 60 Hz and above

• Driving Method: constant current, 1/13 scanning

• Operating Temperature: -10 to 40 degrees C | Operating Humidity: 10 to 60 percent RH

• Storage Temperature: -20 to 60 degrees C | Storage Humidity: 10 to 65 percent RH

• Mounting Hole Pitch: 288 mm x 132 mm | Module Outline: 319.8 mm x 159.8 mm

• Installation Methods: wall mounted or floor mounted on a fixed steel frame

• Signal Interface: HUB75, 16-pin | Data Signals: R1/G1/B1 and R2/G2/B2

• Row Decoding Signals: A, B, C, D | Control Signals: CLK, LAT, OE

• Series: FeuVision L Series | Manufacturer: Dahua Technologies
