LED Modules Dahua FeuVision IFS-LOA4S-C - P4 Outdoor SMD LED Module
Dahua FeuVision IFS-LOA4S-C - P4 Outdoor SMD LED Module
FeuVision IFS-L0A4S-C outdoor LED module — a 4mm pixel pitch SMD1921 outdoor display module built for high-brightness (≥5000 nits) video walls and signage, with a 3840Hz refresh rate, 1/10 scan constant-current driving, and an outdoor build rated for -10°C to 40°C operation.
₹1,250.00
Share :
Product Details
Product Overview

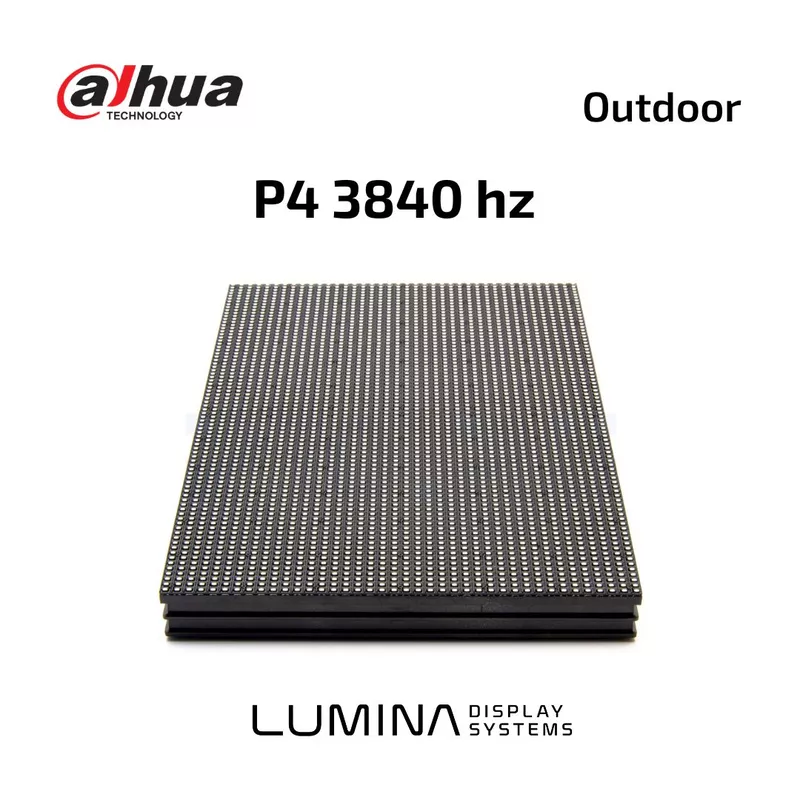

FeuVision IFS-L0A4S-C is a 4mm pixel pitch outdoor SMD LED module built for high-brightness video walls, digital signage, and large-format outdoor displays. Manufactured by Dahua Technologies under the FeuVision brand, it combines a compact SMD1921 package with a robust outdoor-rated enclosure for reliable 24/7 operation.
Module Specifications
• Pixel Pitch: 4mm | Pixel Configuration: SMD1921 | Module Resolution: 80 x 40 (3200 dots)
• Pixel Density: 62,500 dots/m² | Module Size: 320mm x 160mm | Module Weight: 0.49 kg
• Input Voltage: DC 4.5V-5.0V | Max Current: ≤8A | Max Power Consumption: ≤40W
Display Performance
• Max Brightness: ≥5000 nits | Color Temperature: 9500K-13000K (Adjustable) | Viewing Angle: 160°(H) / 120°(V)
• Brightness/Colorful Evenness: 85%-95% | Contrast Ratio: 5000:1 | Refresh Rate: 3840Hz (Frequency ≥60Hz)
• Grayscale: 12-14 bit | Driving Method: Constant Current, 1/10 Scanning
Environmental & Lifespan
• Operating Temperature/Humidity: -10℃ to 40℃ / 10%-60% RH | Storage Temperature/Humidity: -20℃ to 60℃ / 10%-65% RH
Signal & Control
• Signal Interface: HUB75, 16-pin (R1/G1/B1/GND/R2/G2/B2/GND/A/B/C/D/CLK/LAT/OE/GND)
• Manufacturer: Dahua Technologies
Specifications
Technical Specifications
- Pixel Pitch:4mm
- Pixel Density:62500 dots/m²
- Configuration:1R1G1B SMD1921
- Module Size:320 x 160 mm
- Module Weight:0.49 kg
- Resolution:80 x 40 (3200 dots)
- Input Voltage:DC 4.5V-5.0V
- Max Current:8A
- Power Consumption:Max 40W
- Brightness:5000 cd/m²
- Refresh Rate:3840Hz
- Grayscale:12-14 bit (RGB)
- Viewing Angle:160°(H) / 120°(V)
- Operating Temperature:-10℃ to 40℃ (Working) / -20℃ to 60℃ (Storage)
- Signal Interface:HUB75
- Scan:1/10 Scan
