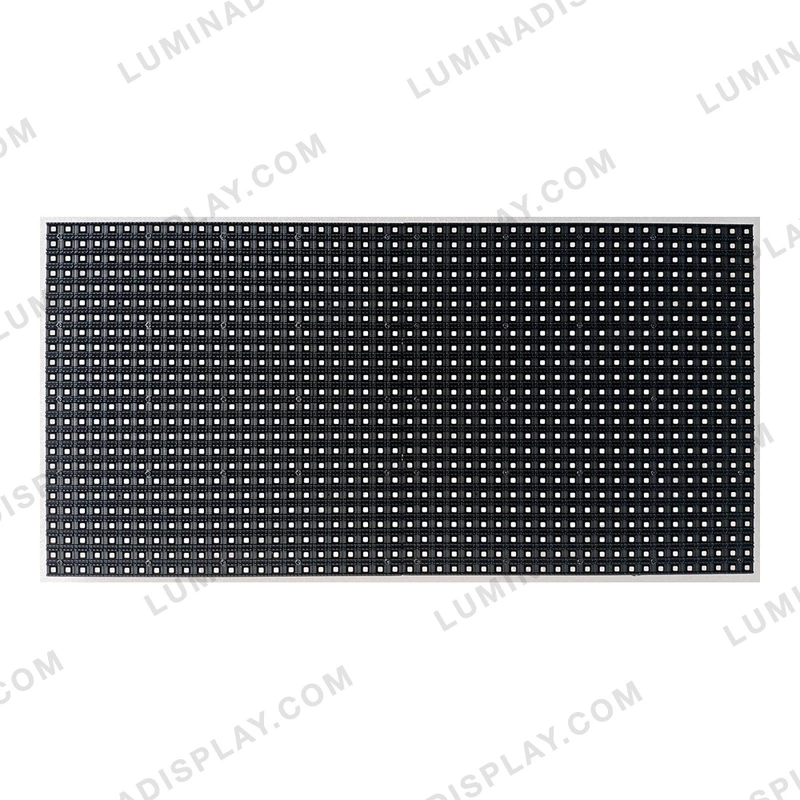

LED Modules Dahua FeuVision IFS-LOA6.67S-C - P6.67 Outdoor SMD LED Module
Dahua FeuVision IFS-LOA6.67S-C - P6.67 Outdoor SMD LED Module
Dahua FeuVision IFS-L0A6.67S-C outdoor LED display module — a 6.67mm pixel pitch, SMD2727 module built for high-brightness (≥5000 nits) outdoor video walls, with a 3840Hz refresh rate, 1/6 constant-current driving, and a rugged outdoor build rated for -10°C to 40°C operation.
₹960.00 ₹1,050.00
Share :
Product Details
Product Overview
The IFS-L0A6.67S-C is a P6.67 outdoor full-color LED display module from Dahua FeuVision, built with SMD2727 LED chips for high-refresh (3840Hz) and high-grayscale (12-14 bit) video wall applications. Precise current-driving technology keeps channel-to-channel and chip-to-chip error under ±2.0%, delivering a 5000:1 contrast ratio and a viewing angle above 120°, with high reliability and long lifespan, ideal for outdoor advertising, stadiums, transit hubs, and large-format outdoor signage.
Module Specifications
• Product Model: IFS-L0A6.67S-C | Module Size: 320mm(W) x 160mm(H)
• Pixel Pitch: 6.67mm | Pixel Density: 25,477 dots/m²
• Pixel Composition: SMD2727 | Configuration: 1R1G1B
• Module Resolution: 48 x 24 (1,152 dots) | Module Weight: 0.49kg
Display Performance
• Max Brightness: ≥5000 nits | Viewing Angle: 160°(H)/120°(V)
• Brightness/Colorful Evenness: 85%-95% | Contrast Ratio: 5000:1
• Refresh Rate: ≥3840Hz | Grayscale: 12-14 bit
• Driving Method: Constant Current, 1/6 Scanning
Electrical Parameters
• Module Input Voltage: DC 4.5V-5.0V | Max Current for Module: ≤8A
• Max Power Consumption for Module: ≤40W | Frequency: ≥60Hz
Environmental Ratings
• Working Temperature/Humidity: -10℃ to 40℃ / 10%-60%RH
• Storage Temperature/Humidity: -20℃ to 60℃ / 10%-65%RH
• Waterproof/Dust-proof: Cabinet IP30, Module IP30
Packaging & Signal Interface
• Packing: 40pcs Module / 20pcs Power Cable / 40pcs Flat Cable per carton
• Signal Interface: HUB75
Manufacturer: Dahua Technology / FeuVision
Specifications
Technical Specifications
- Pixel Pitch:6.67mm
- Pixel Density:25477 dots/m²
- Configuration:1R1G1B SMD2727
- Module Size:320 x 160 mm
- Module Weight:0.49 kg
- Resolution:48 x 24 (1152 dots)
- Input Voltage:DC 4.5V-5.0V
- Max Current:8A
- Power Consumption:Max 40W
- Brightness:5000 cd/m²
- Refresh Rate:3840Hz
- Grayscale:12-14 bit (RGB)
- Viewing Angle:160°(H) / 120°(V)
- Operating Temperature:-10℃ to 40℃ (Working) / -20℃ to 60℃ (Storage)
- Signal Interface:HUB75
- Scan:1/6 Scan
