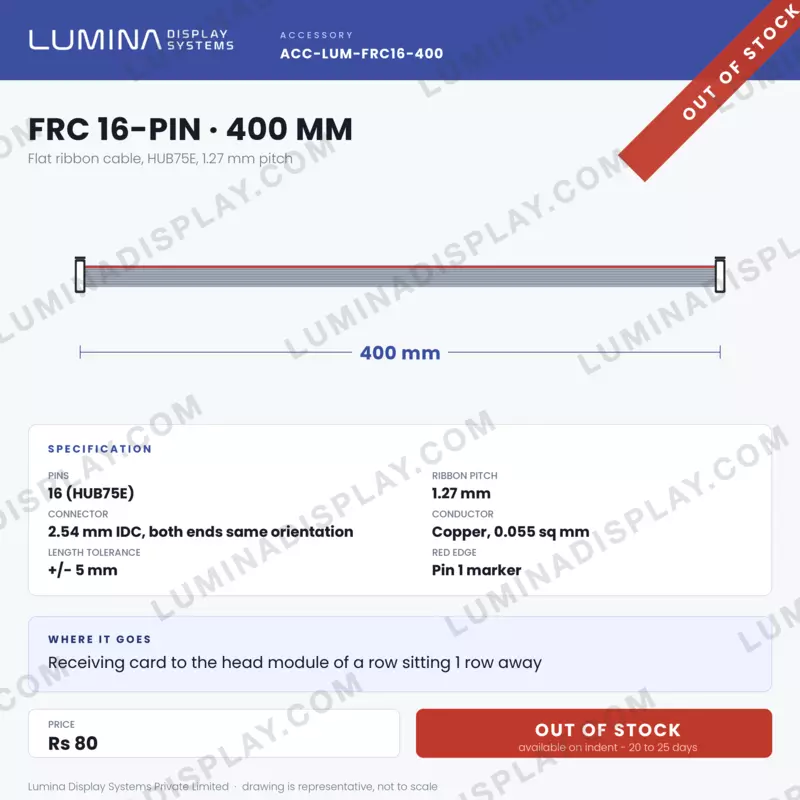

A 400 mm flat ribbon cable with the 16-pin HUB75E pinout, with 2.54 mm IDC connectors at both ends in the same orientation and a 1.27 mm pitch copper ribbon. This is the shortest length in the series and is cut for the run from the receiving card to the head module of the row immediately next to it, one row away. Length tolerance is 5 mm, so the cable sits neatly without a coil of spare ribbon behind the module.
Key details
- 16-pin HUB75E data cable, 400 mm long, tolerance 5 mm
- 1.27 mm ribbon pitch, copper conductor
- 2.54 mm IDC connector at both ends, same orientation
- Receiving card to module row one row away
- Category: LED display accessories
For cabinet assemblers and service technicians wiring HUB75E LED modules to a receiving card. Use the 700 mm length for rows two or three away and the 1100 mm length for rows four or five away. Keep a few spares in the service kit, since a crushed ribbon is a common cause of a dead module row on site. Ex-stock Mumbai, delivered across India by Lumina Display Systems.
