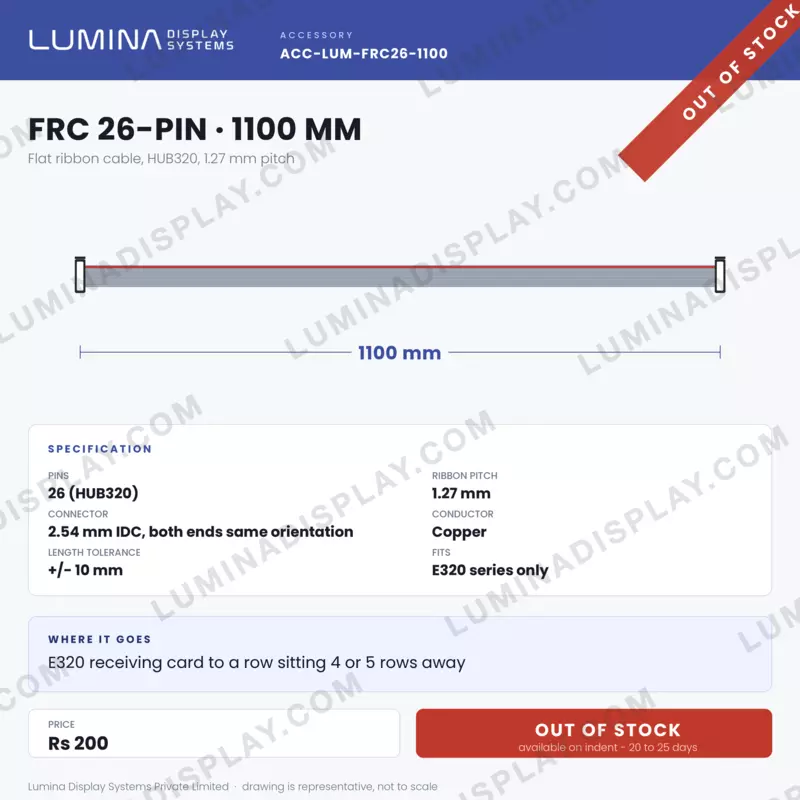

An 1100 mm flat ribbon cable with the 26-pin HUB320 pinout, with 2.54 mm IDC connectors at both ends in the same orientation on a 1.27 mm pitch copper ribbon. HUB320 is the interface of the E320 receiving card line and this cable is for that line only. The 1100 mm length is cut for the run from the card to the head module of a row four or five rows away, the longest run normally found inside a single cabinet or standee.
Key details
- 26-pin HUB320 data cable, 1100 mm long
- 1.27 mm ribbon pitch, copper conductor
- 2.54 mm IDC connector at both ends, same orientation
- For the E320 receiving card line only
- Card to module row four or five rows away
For integrators and cabinet builders using E320-series receiving cards with HUB320 modules in tall cabinets. The 400 mm and 700 mm versions cover the nearer rows, so a cabinet can be wired with the correct length throughout and no ribbon folded behind the modules. Ex-stock Mumbai, delivered across India by Lumina Display Systems.
