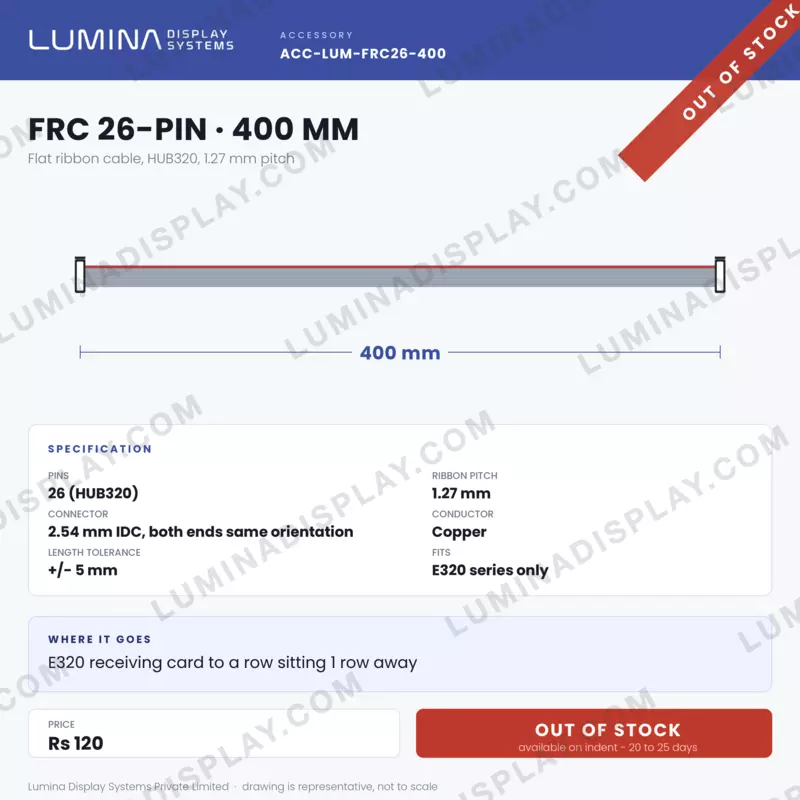

A 400 mm flat ribbon cable with the 26-pin HUB320 pinout, fitted with 2.54 mm IDC connectors at both ends in the same orientation. The ribbon is 1.27 mm pitch copper. HUB320 is the interface used by the E320 receiving card line, and this cable is for that card line only; it does not fit a 16-pin HUB75E header. The 400 mm length is cut for the run from the card to the head module of a row sitting one row away.
Key details
- 26-pin HUB320 data cable, 400 mm long
- 1.27 mm ribbon pitch, copper conductor
- 2.54 mm IDC connector at both ends, same orientation
- For the E320 receiving card line only
- Card to module row one row away
For integrators and cabinet builders using E320-series receiving cards with HUB320 modules. The same cable family is available in 700 mm for rows two or three away and 1100 mm for rows four or five away, so a full cabinet can be wired with the correct length at each row. Ex-stock Mumbai, delivered across India by Lumina Display Systems.
