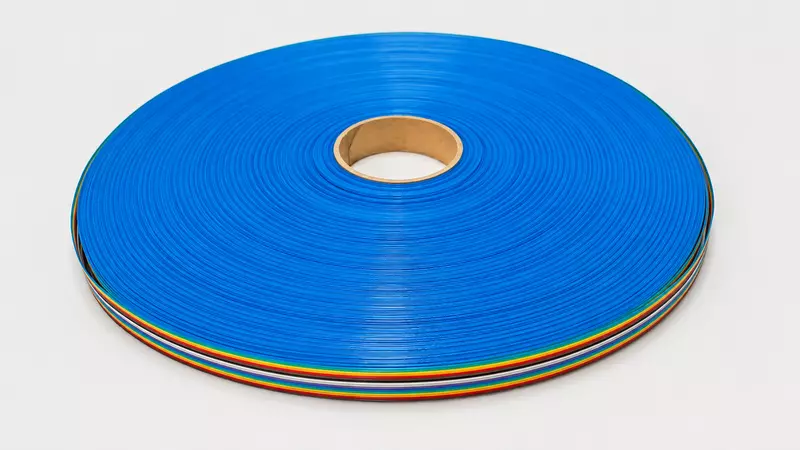

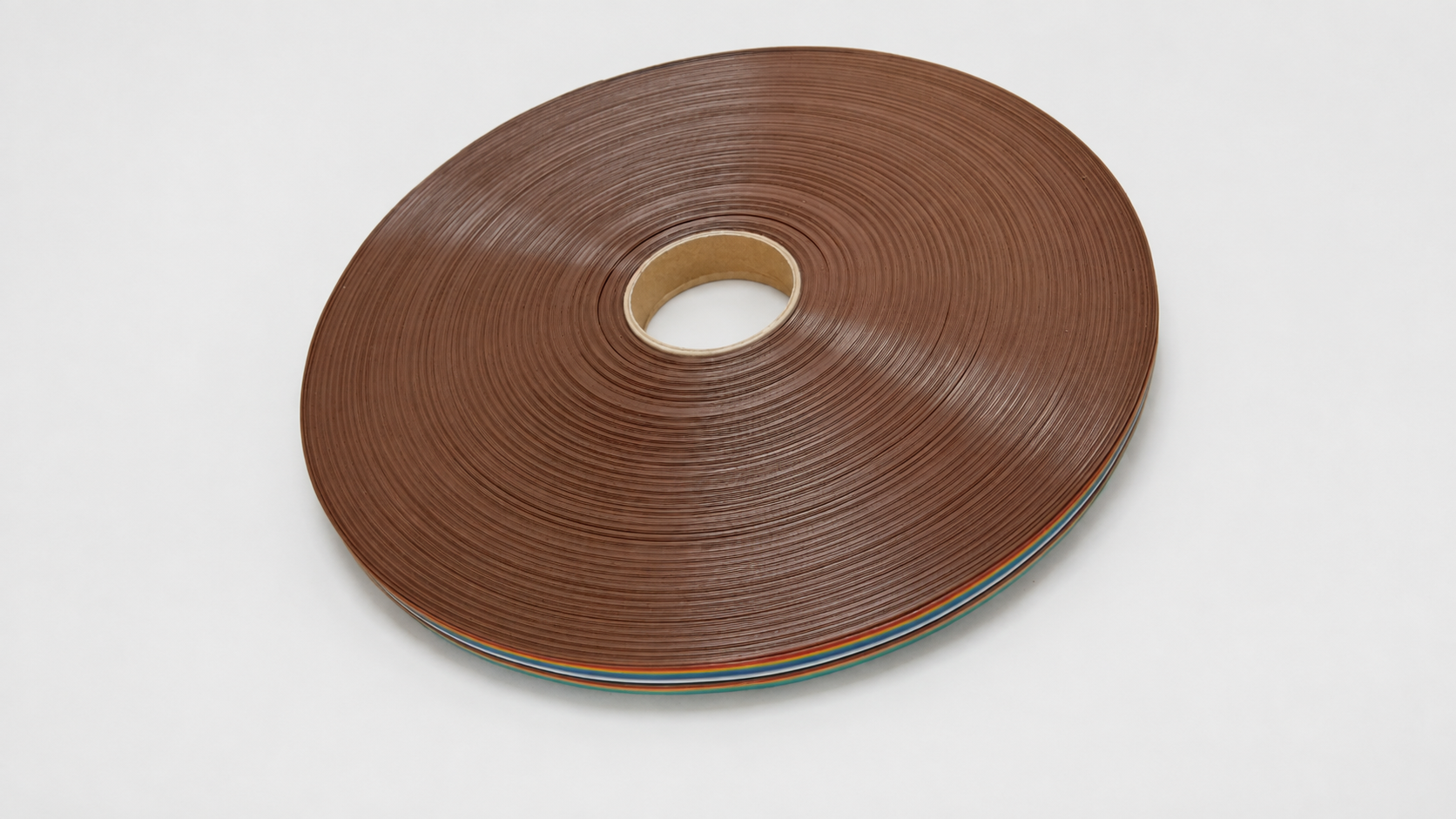

Accessories 16-Pin Flat Ribbon Cable (FRC) 165 m Roll - 1.27 mm Pitch, Multicolour

FRC cable Roll - 165m (Copper|Multicolor)

16-Pin Flat Ribbon Cable (FRC) 165 m Roll - 1.27 mm Pitch, Multicolour

Name: 16-Pin Flat Ribbon Cable (FRC) 165 m Roll - 1.27 mm Pitch, Multicolour
Brand: Lumina
SKU: ACC-LUM-FRC16-165M
Price: 5250.0 INR
Availability: InStock

16-conductor flat ribbon cable supplied on a 165 m roll. Stranded 28 AWG tinned copper conductors on a 1.27 mm pitch, built to UL Style 2651 and sized for standard 2.54 mm IDC connector termination. Colour-coded rainbow PVC jacket with a red edge conductor marking Pin 1 for fast polarity checks during termination. Rated 300 V and -20 to +105 degrees C. Used for signal runs between receiving cards, hub cards and LED modules.

Non-returnable

₹5,250.00

Product Details

Construction

• Conductor count: 16 pins | Configuration: Parallel planar ribbon

• Wire gauge: 28 AWG | Stranding: 7 strands x 0.127 mm

• Conductor material: Stranded tinned copper | Standard: UL Style 2651

• Pitch: 1.27 mm (0.05 in) | Mates with: 2.54 mm IDC connectors

• Cable width: 20.32 mm (0.80 in) | Roll length: 165 m

Insulation and Marking

• Jacket: Colour-coded rainbow PVC | Flame rating: UL 94 V-0 / VW-1

• Polarity marker: Red edge conductor identifies Pin 1

Electrical

• Voltage rating: 300 V AC/DC | Current rating: 1.5 A max per conductor

• Max conductor resistance: 237 ohms/km at 20 degrees C

Operating Environment

• Temperature range: -20 to +105 degrees C continuous

Applications

• Signal runs between receiving card and LED module

• Hub card to module harnesses

• Any 2.54 mm IDC ribbon termination on LED display hardware
