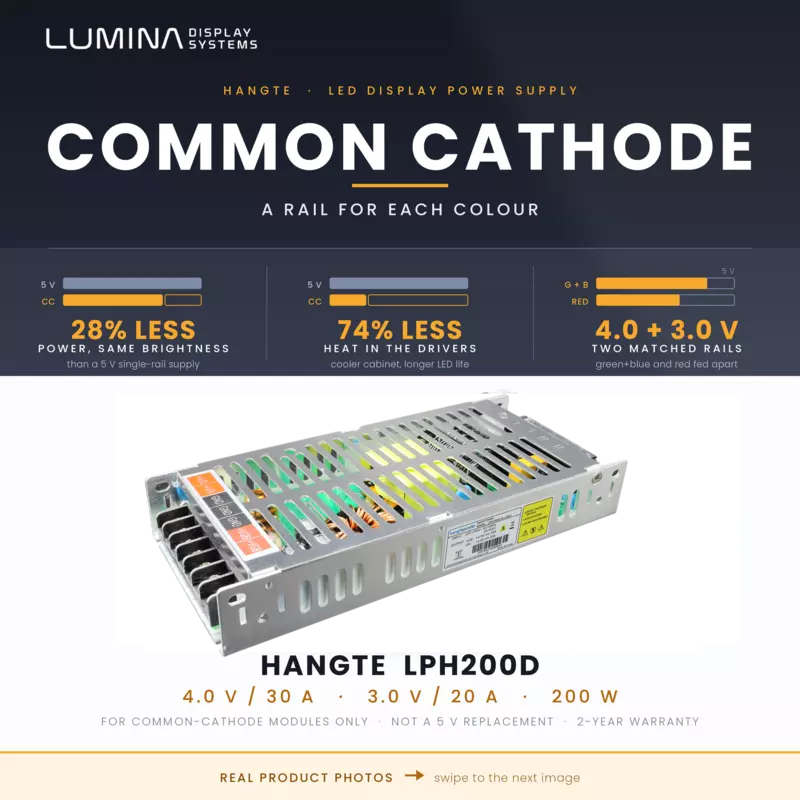

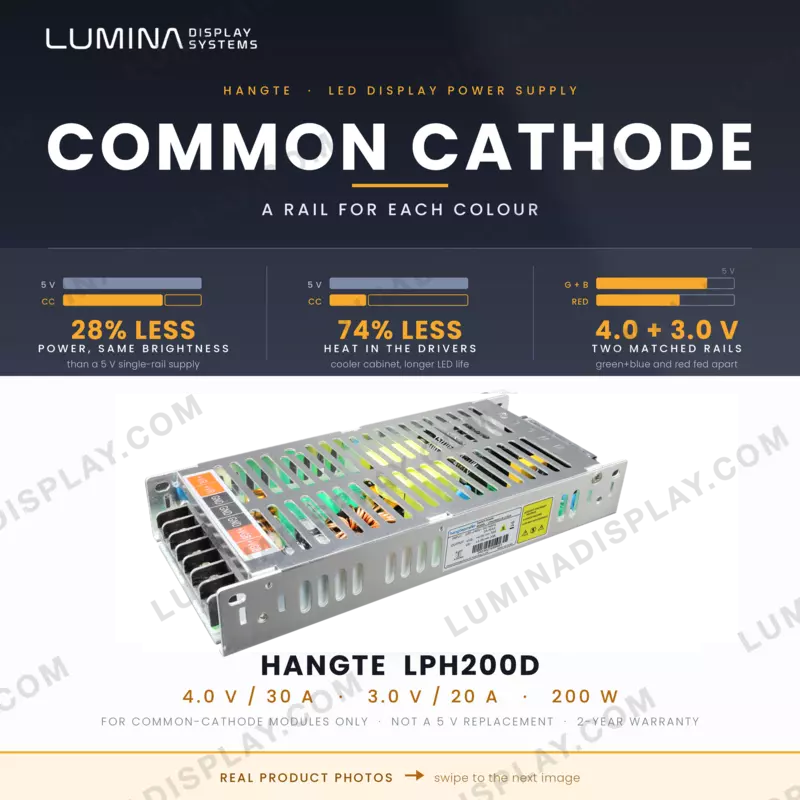

Hangte LPH200D 3.8V/2.8V 200W common cathode powersupply

Hangte LPH200D3.8+2.8U8 is a 200W fan-less common-cathode LED display power supply. Rather than running every LED colour from a single 5V rail, it delivers two separately regulated outputs — VGB at 3.88-4.1Vdc for the green and blue dies, and VR at 2.88-3.1Vdc for the red — so each colour is driven close to its own forward voltage. The voltage headroom that a conventional single-rail supply burns off as heat inside the driver ICs is largely removed, which lowers overall display power draw and keeps cabinets running cooler. The ultra-thin 30mm slim case suits a wide range of cabinet depths, and every unit is 100% aging tested.

• Output VGB (green and blue): 3.88-4.1Vdc / 0-30A

• Output VR (red): 2.88-3.1Vdc / 0-20A

• Total Rated Power: 200W

• Input Voltage: 176-264VAC, 47-63Hz

• Input Current: 3A at 240VAC

• Power Factor: greater than 0.5

• Efficiency: 87% or better

• Ripple and Noise: 200mVp-p max on both rails

• Turn-on Overshoot: under 5.0%

• Start-up Time: 3 seconds

• Dynamic Load Response: within ±500mV on a 10%-100% load step; within ±300mV on 10%-50% and 50%-100% steps

• Capacitive Load: 5000uF minimum per rail

• Overload Protection: 110%-150% rated, hiccup mode, auto-recovery

• Over Current Protection: VGB 31-60A auto-recovery; VR 21-40A latch

• Over Voltage Protection (VGB): 4.1V min / 4.3V typical / 4.5V max

• Short Circuit Protection: VGB continuously short-circuit resilient with auto-restart; VR latch-off

• Withstand Voltage: I/P-O/P 3.0KVac; I/P-Case 1.5KVac; O/P-Case 0.5KVac

• Isolation Resistance: 100M ohms (I/P-O/P, I/P-Case, O/P-Case)

• MTBF: 100000 hrs at 25C (MIL-217 Method 2)

• Safety Standard: GB4943 / UL60950; reference standards EN60950 / EN55022 / GB17625.1 / GB/T14714

• Heat Dissipation: fan-less, free air convection

• Standard slim case, 30mm height

• Operating Temperature: -40C to +70C (refer to derating curve)

• Storage Temperature: -40C to +85C

• Operating Humidity: 20%RH-95%RH, non-condensing

• Vibration: 10-500Hz, 2G, 10 min per cycle along X, Y and Z axes

• PCB double-side conformal coating

• Dimensions: 190 x 82 x 30mm (L x W x H)

• Net Weight: 380g

• Packing: 40 pcs per carton, 15.2kg per carton

• Important: this is a common-cathode supply and must be paired with common-cathode LED modules and driver ICs. It is not a drop-in replacement for a conventional 5V power supply.

• Warranty: 2 years

• Recommendation: reserve a 30% power margin over actual load for extended service life

• Origin: Imported from China (Changsha Hangte Electronic Technology Co., Ltd)
