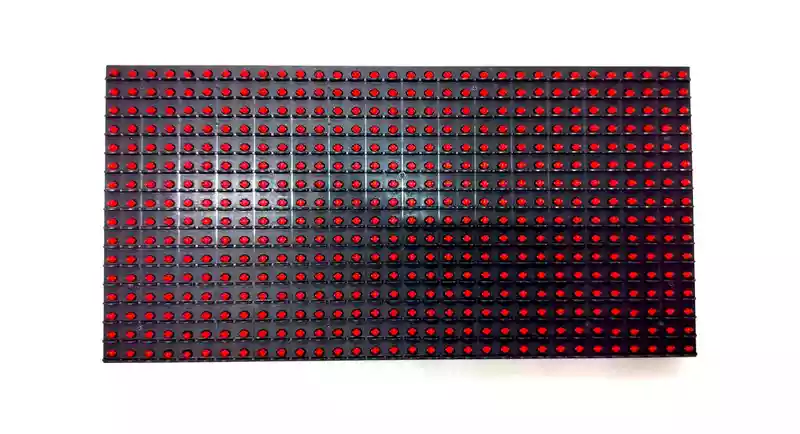

Product OverviewMEIYAD P10 Outdoor LED Display Module (Red) is a single-color DIP546 LED module built for outdoor scrolling text, signage, and single-color display panels. Each module measures 320x160mm at a 10mm pixel pitch (32x16 resolution), driven via the HUB12 interface with 1/4 scan constant voltage/constant current drive.
Pixel & Module Specifications
• LED Type: DIP546
• Pixel Pitch: 10mm
• Module Size: 320 x 160mm
• Module Resolution: 32 x 16 pixels
• Pixel Density: 10,000 pixels/m²
• Module Weight: 0.41kg
Display Performance
• Brightness: 2300cd/m² (Constant Voltage Drive) / 1500cd/m² (Constant Current Drive)
• Viewing Angle: Horizontal ≥110°, Vertical ≥55°
• Best Viewing Distance: 10-100m
• Dead Pixel Rate: ≤3PPM
Electrical Specifications
• Interface: HUB12
• Drive Method: 1/4 scan, Constant Voltage/Constant Current Drive
• Working Voltage: DC 5V
• Module Current: 4.3A
• Max Power Consumption: ≤20W/module (Avg ≤10W/module)
• Max Power per m²: 350W (Avg 180W/m²)
• Single LED Current: ≤20mA
Environmental & Lifespan
• Life Span: >100,000 hours
• Working Temperature: -20°C to 60°C
• Working Humidity: 10%-90%RH
Manufacturer
Shenzhen Meiyad Optoelectronics Co., Ltd.
