MS Cabinet 640 mm x 640 mm

The MS Cabinet 640 x 640 mm is sized for small outdoor screens and for filling in the edges of larger ones. Eight 320 x 160 mm modules fill it, two across and four down, so it works equally for a compact shop-front P4 or P5 display and as a trim cabinet alongside 1280 mm wide units. Lumina builds it in India from imported 1.2 mm GI sheet with a powder-coated matte finish, the same construction as the rest of the outdoor range.

Key details

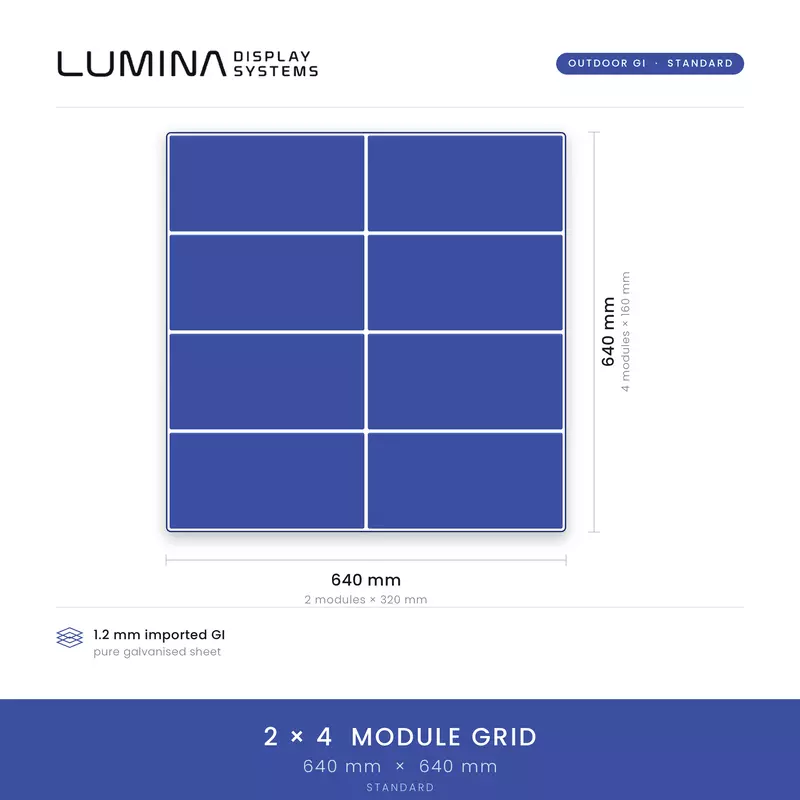

• Outer size 640 x 640 mm; 8 modules of 320 x 160 mm per cabinet
• Imported 1.2 mm galvanised iron sheet, powder-coated matte
• Waterproof outdoor build; rust-proof, will not corrode
• Multi-hole mounting pattern for modules from all popular brands
• Back-service design for receiving card and power supply

Who it's for: sign makers and integrators who need a small outdoor cabinet for shop signage, gate displays or edge-filling in mixed-size walls. It accepts 320 x 160 mm outdoor modules from Qiangli, Dahua FeuVision and MEIYAD, and takes Colorlight receiving cards and CZCL power supplies stocked by Lumina. Ex-stock Mumbai, delivered across India by Lumina Display Systems.
