MS Cabinet 768 mm x 960 mm - P6
Share :

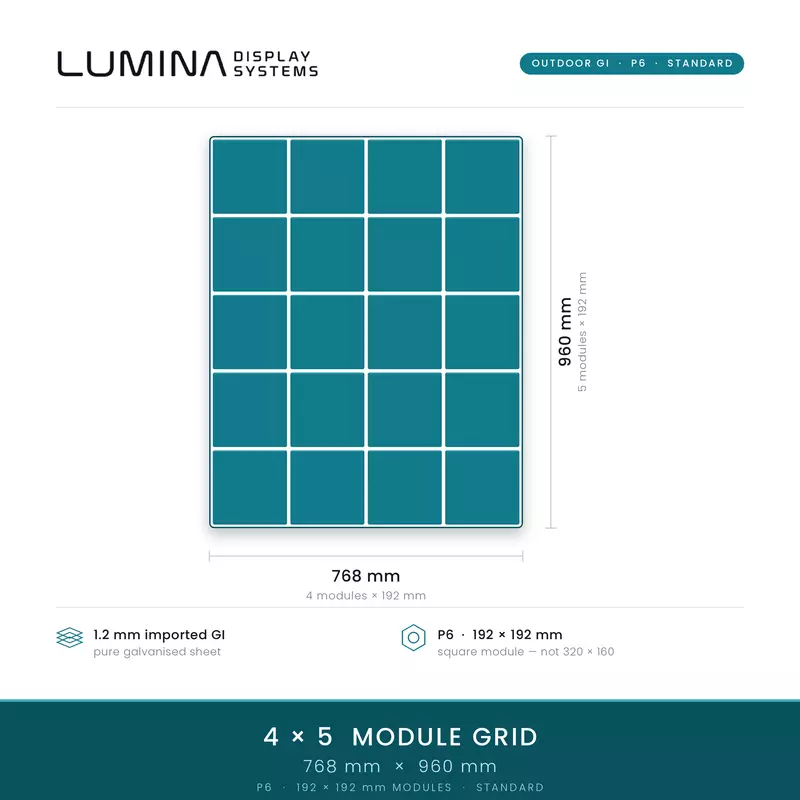

This 768 x 960 mm MS cabinet is one of the few in the range cut specifically for 192 x 192 mm modules, the standard P6 outdoor module size. Four modules across and five down fill the cabinet exactly, which keeps module counts simple when planning a P6 hoarding or roadside screen. Lumina fabricates it in India from imported 1.2 mm GI sheet, powder-coated matte, with the waterproof outdoor construction used across its MS line.
Key details
- Outer size 768 x 960 mm; holds 20 modules of 192 x 192 mm (4 x 5)
- Imported 1.2 mm galvanised iron sheet with powder-coated matte finish
- Waterproof outdoor construction; rust-proof, will not corrode
- Multi-hole mounting for 192 x 192 mm modules from all popular brands
- Back-service access
Who it's for: integrators and outdoor advertising contractors building P6 screens who want a cabinet matched to 192 x 192 mm modules rather than adapting a 320 x 160 mm frame. Compatible with Qiangli, Dahua FeuVision and MEIYAD P6 outdoor modules, Colorlight receiving cards and CZCL power supplies from the Lumina range. Ex-stock Mumbai, delivered across India by Lumina Display Systems.
Technical Specifications
- Material:Imported GI (Galvanized Iron) Sheet - 1.2mm thickness
- Waterproof Rating:Waterproof (Outdoor)
- Cabinet Design:Multi-hole mounting - compatible with LED modules from all popular brands
- Corrosion Resistance:Rust-proof - will not corrode
- Surface Finish:Powder-coated Matte finish
- Included Accessories:Mounting clamps and power supply mounting plate included
- Receiving Card Mounting:Receiving card mounting plate supplied
- Country of Origin:Imported from China
- Cabinet Dimensions (W x H x D):768 x 960 x 120 mm
