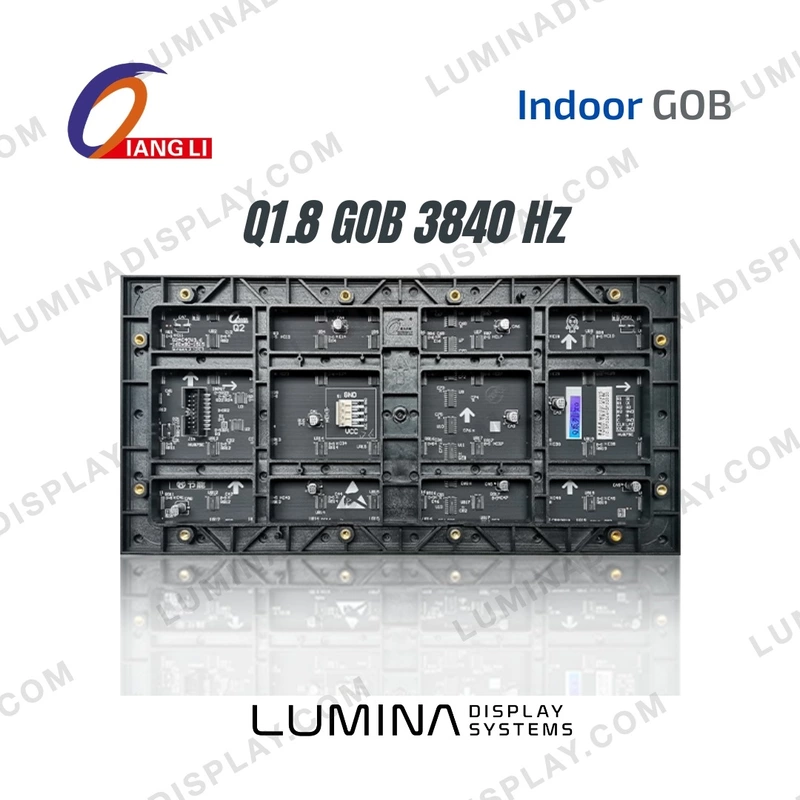

Qiangli Q1.8 MPro - P1.8 Indoor GOB LED Module, 3840Hz

The Qiangli Q1.8 MPro (item Q1.8-43S-H-1515) is a 1.8 mm pixel pitch indoor full-colour LED module built on 1R1G1B GOB1515 packaging. GOB encapsulation seals the lamp surface against moisture, dust and impact while keeping single-lamp maintainability, making it well suited to high-traffic indoor installations, control rooms, retail and rental use. Lamps and driver ICs sit on the same PCB with constant-current 1/43 scan driving, delivering 3840 Hz refresh, 13-14 bit grayscale and 4398 billion colours with no afterimage, no caterpillar effect and low surge. Each 320 x 160 mm module carries a 172 x 86 pixel array at 288906 dots per square metre and mounts magnetically to a 640 x 480 mm front-service cabinet.

• Item No.: Q1.8-43S-H-1515 | Pixel Pitch: 1.8 mm

• Configuration: 1R1G1B | LED Lamp: GOB1515

• Pixel Density: 288906 dots/sq.m | Resolution: 172 x 86 = 14792 dots

• Module Size (W x H x D): 320 x 160 x 15 mm | Weight: 0.37 kg +/-0.01 kg

• Structure: Lamp and IC on the same PCB | Driving Method: Constant current, 1/43 scan

• Input Voltage: DC 4.5 +/-0.1 V | Max Current: 5 A | Max Power Consumption: 23 W

• Power supply loading: 40A for 5-6 modules | 40A PFC for 7-8 | 50A for 7-8 | 80A for 10-12

• Brightness: 500 cd/sq.m and above | Brightness Uniformity: greater than 0.95

• Viewing Angle: 140 +/-10 degrees horizontal / 130 +/-10 degrees vertical

• Best Viewing Distance: 3.6 m and above | Black Spot Ratio: below 0.0003 (zero ex-factory)

• Grayscale: 13-14 bits (RGB each) | Display Colours: 4398 billion

• Refresh Frequency: 3840 Hz and above | Frame Frequency: 60 frames/sec and above

• Brightness Adjustment: 256-grade manual or automatic | Max Power: 439 W/sq.m

• Average Failure Free Time: 5000 hours and above | Attenuation after 3 years: 15% or less

• Cabinet Size (W x H x T): 640 x 480 x 85 mm (including module, cabinet and connecting piece)

• Cabinet Resolution: 344 x 258 = 88752 dots | Cabinet Area: 0.307 sq.m | Weight: 7.67 kg +/-0.05 kg

• Cabinet Power: max 135 W | average 45 W (1/3 max) | distribution 173 W at 78% supply capacity

• Magnetic attraction mounting with front maintenance for fast module removal

• Operating Temperature: -20 to 40 degree C | Storage Temperature: -10 to 30 degree C

• Operating Humidity: 10%-65% RH (no condensation) | Storage Humidity: 10%-60% RH

• Lamp surface temperature in operation: 60 degree C or below

• Protection: IP30, indoor use only | Grounding resistance: 10 ohm or less, zero-to-ground voltage 2 V or less

• Interface: HUB75 16-pin (RD1/GD1/BD1 and RD2/GD2/BD2 data, A/B/C/D/E row control, CLK, LAT, OE, GND)

• Control Mode: computer control, point-to-point, video synchronisation, real-time display

• Input Signal: DVI / VGA / HDMI / DP, composite video, S-VIDEO, YPbPr (HDTV)

• Installation: fixed, hoisting, wall-mounted or indoor rental | Manufacturer: Xiamen Qiangli Jucai
