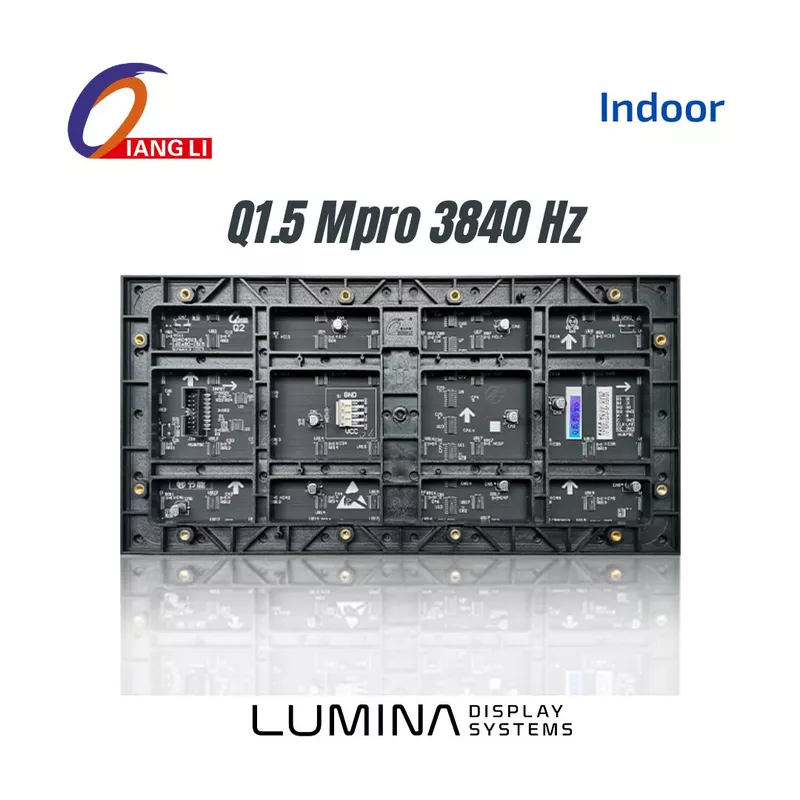

Qiangli Q1.5 MPro - P1.5 Indoor LED Module, 3840Hz

The Qiangli Indoor Q1.5 Mpro is a high-resolution indoor LED display module engineered for premium video wall and control room installations. With a fine 1.5mm pixel pitch and 1/52 scan constant-current driving, it delivers sharp, detailed imagery at close viewing distances while maintaining the reliability and consistency required for demanding indoor deployments.

• Pixel Pitch: 1.5mm | Pixel Density: 422500 dots/m²

• Configuration: 1R1G1B SMD1212

• Module Size: 320 x 160 x 14.5 mm | Module Weight: 0.44 kg

• Resolution: 208 x 104 (21632 dots)

• Input Voltage: DC 4.5V ±0.1V | Max Current: 6.6A

• Power Consumption: Max 30W

• Scan: 1/52 Scan

• Brightness: ≥500 cd/m²

• Refresh Rate: ≥3840Hz

• Grayscale: 14-16 bit (RGB)

• Viewing Angle: 140°(H) / 130°(V)

• Operating Temperature: -20°C to 40°C

• Life Span: 5000 hours min (Average Failure Free Time)

• Cabinet Size: 640 x 480 mm

• Cabinet Weight: 7.67kg ± 0.05kg

• Max Power: ≤178W | Avg Power: ≤59W

• Input Signal: DVI/VGA/HDMI/DP, composite video, S-VIDEO, YPbPr (HDTV)

• Manufacturer: Xiamen Qiangli
