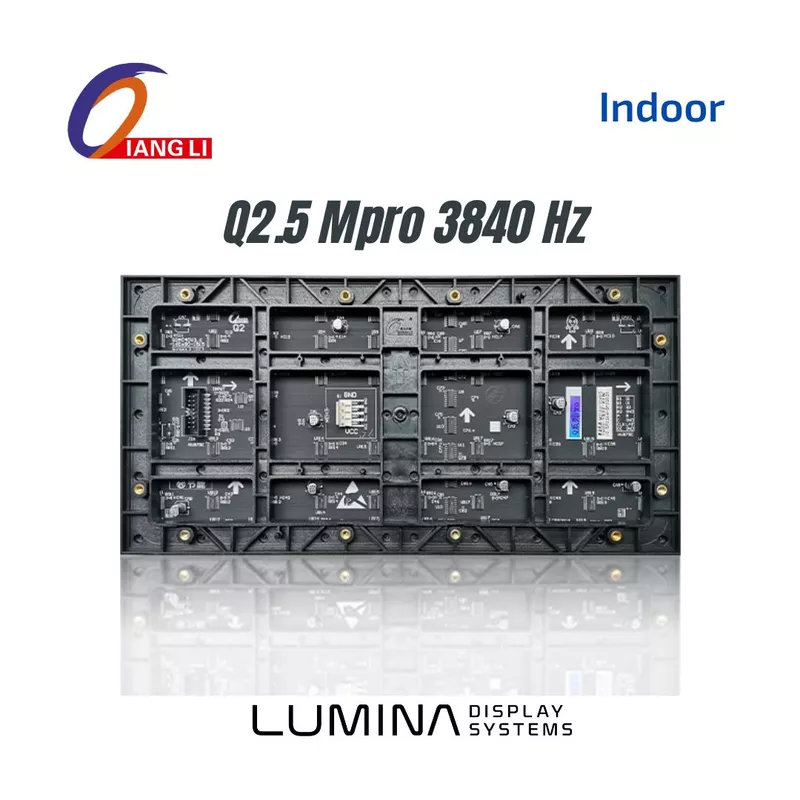

Qiangli Indoor Q2.5 Mpro 3840 hz

Qiangli's Q2.5-32S-H-2020 is a 2.5mm pixel pitch indoor full-color LED module built on a 1R1G1B SMD2020 lamp with lamp-and-IC-on-same-PCB construction. Driven by constant current at a 1/32 scan rate, it delivers high refresh (≥3840Hz), high grayscale (14-16 bit) images with no afterimage, anti-caterpillar effect, and low power consumption — designed to splice into indoor video walls and signage of any size via the 640mm x 480mm cabinet.

• Pixel Pitch: 2.5mm | Configuration: 1R1G1B

• LED Lamp: SMD2020 | Size: 320 x 160 x 15mm

• Weight: 0.34kg ± 0.01kg | Resolution: 128 x 64 = 8192 Dots

• Input Voltage (DC): 4.5 ± 0.1V | Maximum Current: ≤5.2A

• Power Consumption: ≤23W | Driving Method: Constant Current, 1/32 Scan

• Pixel Density: 160000 Dots/m²

• Brightness: ≥500cd/m² | Brightness Uniformity: >0.95

• Horizontal Viewing Angle: 140 ±10° | Vertical Viewing Angle: 130 ±10°

• Best Viewing Distance: ≥5m | Black Spot Ratio: <0.0003 (0 at factory shipment)

• Grayscale: 14-16 bits (RGB each) | Display Color: 4398 Billion

• Frame Frequency: ≥60 frame/sec | Refresh Frequency: ≥3840Hz

• Brightness Adjustment: 256-grade manual/automatic | Max Power Consumption: ≤457 W/m²

• Operating Temperature: -20°C to 40°C | Storage Temperature: -10°C to 30°C

• Operating Humidity: 10%-65%RH (no condensation) | Storage Humidity: 10%-60%RH

• Average Failure Free Time: ≥5,000 hours | Attenuation (3 years later): ≤15%

• Operation Environment: Indoor

• Cabinet Size: 640 x 480 x 85mm (thickness incl. module, cabinet & connecting piece)

• Cabinet Pixel Density: 256 x 192 = 49152 Dots | Cabinet Area: 0.307m²

• Cabinet Weight: 7.61kg ± 0.05kg | Cabinet Max Power Consumption: ≤140W

• Average Power Consumption (1/3 Max): ≤47W | Distribution Power (78% Capacity): ≤180W

• Mounting: Magnetic attraction, front maintenance/service technology

• Signal Interface: HUB75 | Input Signal: DVI/VGA/HDMI/DP, composite video, S-VIDEO, YPbPr (HDTV)

• Control Mode: Computer control, point-to-point, video synchronization, real-time display

• Manufacturer: Xiamen Qiangli
