LED Modules Qiangli Q2.6 Pro - P2.6 Indoor LED Module, 6000Hz
Qiangli Q2.6 Pro - P2.6 Indoor LED Module, 6000Hz
Qiangli DM2.6-24S-1515 indoor LED display module — a 2.604mm pixel pitch, SMD1515 module built for high-refresh (6000Hz) indoor video walls, with ≥600 cd/m² brightness, 140°/130° viewing angle, and constant-current driving for uniform, low-power image quality.
Non-returnable
₹1,650.00
Share :
Product Details
2Product Overview

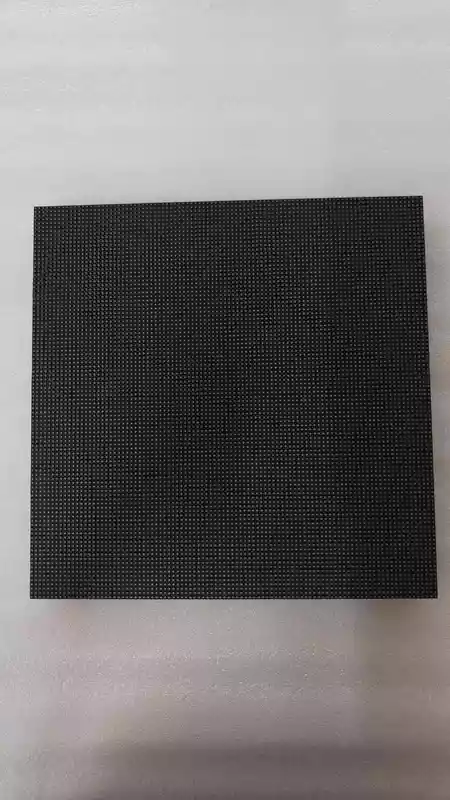

The Qiangli DM2.6-24S-1515 is a P2.6 indoor full-color LED display module using SMD1515 LED chips, delivering high refresh rate, high grayscale, and low power consumption for indoor rental and fixed-installation video walls. Precise constant-current driving ensures uniform brightness with no residual image or "caterpillar" artifacts, well suited for control rooms, retail, and indoor rental applications.
Module Specifications
• Product Model: DM2.6-24S-1515 | Module Size: 250 x 250 x 16 mm
• Pixel Pitch: 2.604mm | Pixel Density: 147,456 dots/m²
• Pixel Composition: SMD1515 | Configuration: 1R1G1B
• Module Resolution: 96 x 96 (9,216 dots) | Module Weight: 0.55kg ±0.01
Display Performance
• Brightness: ≥600 cd/m² | Brightness Uniformity: >0.95
• Viewing Angle: 140°(H)/130°(V) | Best Viewing Distance: ≥3m
• Refresh Rate: 6000Hz | Grayscale: 12-14 bit per channel
• Driving Method: Constant Current, 1/24 Scanning
Electrical Parameters
• Module Input Voltage: DC 4.5V ±0.1V | Max Current for Module: ≤4.2A
• Max Power Consumption for Module: ≤19W | Frame Rate: ≥60fps
Environmental & Lifespan
• Working Temperature/Humidity: -20°C to 40°C / 10%-65%RH
• Storage Temperature/Humidity: -10°C to 30°C / 10%-60%RH
• Mean Time Between Failures: ≥5000 hours
• Waterproof/Dust-proof: Indoor Use Only
Recommended Cabinet (500 x 500 mm)
• Cabinet Resolution: 192 x 192 (36,864 dots) | Panel Weight: 6kg
• Max Power Consumption: ≤76W | Average Power Consumption: ≤25W
Signal & Control
• Signal Interface: HUB75 (16-pin) | Input Signal: DVI/VGA/HDMI/DP, composite video, S-VIDEO, YPbPr
Manufacturer: Xiamen Qiangli
Specifications
Technical Specifications
- Pixel Pitch:2.604mm
- Pixel Density:147456 dots/m²
- Configuration:1R1G1B SMD1515
- Module Size:250 x 250 x 16 mm
- Module Weight:0.55 kg
- Resolution:96 x 96 (9216 dots)
- Input Voltage:DC 4.5V ±0.1V
- Max Current:4.2A
- Power Consumption:Max 19W
- Brightness:600 cd/m²
- Refresh Rate:6000Hz
- Grayscale:12-14 bit (RGB)
- Viewing Angle:140°(H) / 130°(V)
- Operating Temperature:-20°C to 40°C
- Life Span:5000 hours min (Average Failure Free Time)
- Recommended Cabinet Size:500 x 500 mm
- Signal Interface:HUB75
- Scan:1/24 Scan
