LED Modules Qiangli Outdoor Q2.5 Mpro
Qiangli Outdoor Q2.5 Mpro
Qiangli Q2.5 Mpro 3840Hz outdoor LED module — a 2.5mm pixel pitch, SMD1515 outdoor display module built for high-brightness (4,200 cd/m²) video walls and signage, with a 3,840Hz refresh rate, 1/16 scan constant-current driving, and an outdoor build rated for -20°C to 40°C operation.
Out of stock
₹3,100.00
Share :
Product Details
Product Overview

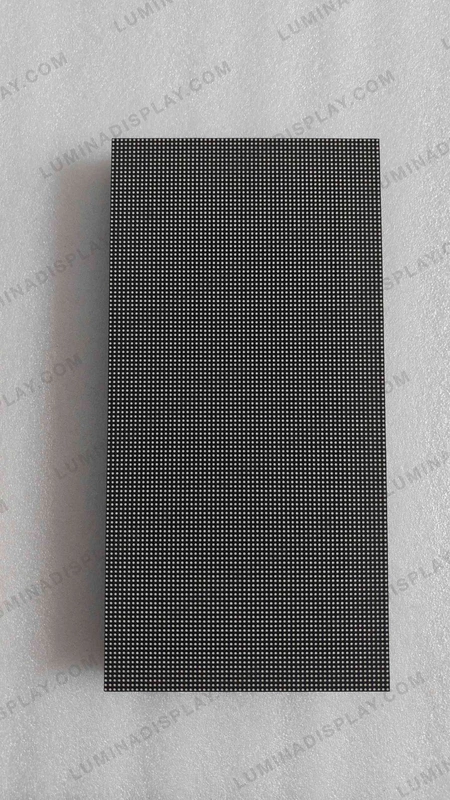

Qiangli Q2.5 Mpro 3840Hz Outdoor LED Module (Qiangli Item No. Q2.5-16S-H-1515, Rev 3.2) is a 2.5mm pixel pitch, SMD1515 outdoor full-color display module built for high-brightness video walls and signage, driven by constant current with 1/16 scan.
Module Specifications
• Pixel Pitch: 2.5mm | Pixel Density: 160,000 dots/m²
• Configuration: 1R1G1B | LED Lamp: SMD1515
• Module Size: 320x160x18.5mm | Weight: 0.42kg ± 0.01kg
• Structure: Lamp & IC in same PCB | Resolution: 128x64 (8,192 dots)
• Input Voltage: DC 4.5V (±0.1V) | Max Current: up to 7.37A
• Power Consumption: up to 33W | Driving: Constant Current, 1/16 Scan
Display Performance
• Brightness: 4,200 cd/m² | Brightness Uniformity: over 0.95
• Refresh Rate: min 3,840Hz | Frame Rate: min 60fps
• Grayscale: 13-bit (RGB) | Display Colors: 4,398 Billion
• Viewing Angle: 140±10 deg (H) / 130±10 deg (V)
• Best Viewing Distance: min 4.5m | Black Spot Ratio: under 0.0003 percent (0 ex-factory)
Environmental & Lifespan
• Operating Environment: Outdoor
• Operating Temp: -20C to 40C | Storage Temp: -10C to 30C
• Operating Humidity: 10-90% RH | Storage Humidity: 10-60% RH
• Life Span: min 5,000 hrs (Average Failure Free Time)
• Brightness Attenuation (3yr): up to 15%
Recommended Cabinet (960x960mm)
• Cabinet Size: 960x960x104.5mm (module+box) / 169.5mm (with connector)
• Cabinet Pixel Density: 384x384 (147,456 dots)
• Cabinet Area: 0.9216 m² | Cabinet Weight: 29.7kg ± 0.5kg
• Cabinet Max Power: up to 597W | Avg Power (1/3 max): up to 199W
• Distribution Power (78% capacity): up to 765W
Signal & Control
• Signal Interface: HUB75
• Input Signal: DVI/VGA/HDMI/DP, Composite Video, S-Video, YPbPr(HDTV)
• Control Mode: Computer control, point-to-point, video sync, real-time display
• Brightness Adjustment: 256-grade manual/automatic
• Manufacturer: Xiamen Qiangli Jucai Opto-Electronic Technology Co., Ltd.
Specifications
Technical Specifications
- Pixel Pitch:2.5mm
- Pixel Density:160000 dots/m²
- Configuration:1R1G1B SMD1515
- Module Size:320 x 160 x 18.5 mm
- Module Weight:0.42 kg
- Resolution:128 x 64 (8192 dots)
- Input Voltage:DC 4.5V ±0.1V
- Max Current:7.37A
- Power Consumption:Max 33W
- Brightness:4200 cd/m²
- Refresh Rate:3840Hz min
- Grayscale:13-bit (RGB)
- Viewing Angle:140°(H) / 130°(V)
- Operating Temperature:-20°C to 40°C
- Life Span:5000 hours min (Average Failure Free Time)
- Recommended Cabinet Size:960 x 960 mm
- Signal Interface:HUB75
- Scan:1/16 Scan
