LED Modules Qiangli Q3 MPro - P3 Outdoor LED Module, 3840Hz

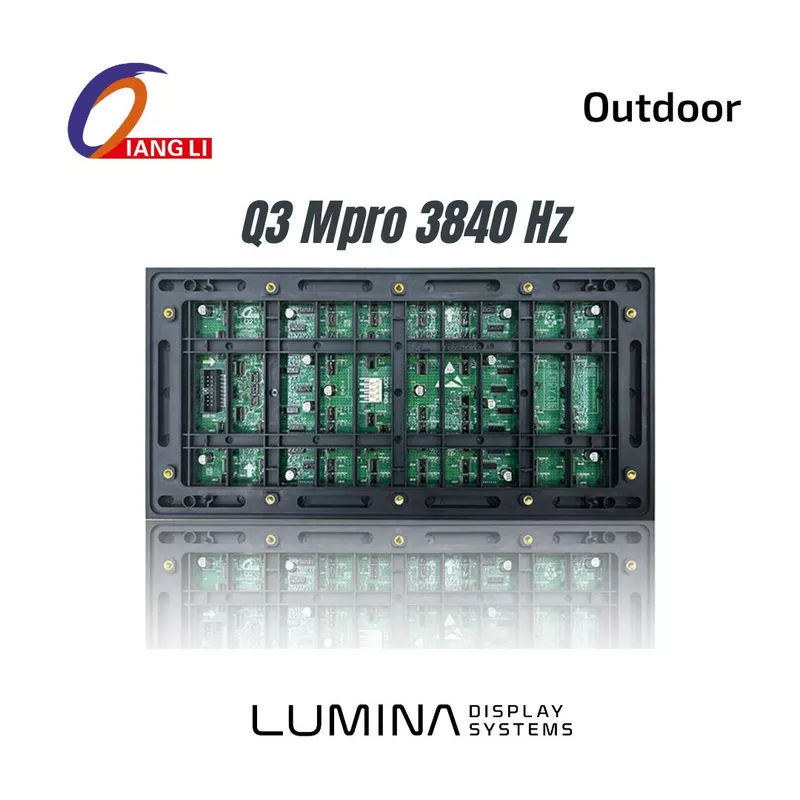

Qiangli Q3 MPro - P3 Outdoor LED Module, 3840Hz
3mm pitch SMD1515 outdoor LED module — ≥4,200 cd/m² brightness, ≥3,840Hz refresh and 1/13 scan constant-current driving, rated -20°C to 40°C.
₹2,100.00
Share :
Product Details
Product Overview
The Qiangli Outdoor Q3 Mpro is a high-refresh outdoor LED display module engineered for premium video wall and advertising installations. With a fine 3mm pixel pitch and 1/13 scan constant-current driving, it delivers sharp, vivid imagery at close viewing distances while maintaining the brightness and durability required for outdoor deployment.
Module Specifications
• Pixel Pitch: 3mm | Pixel Density: 105625 dots/m²
• Configuration: 1R1G1B SMD1515
• Module Size: 320 x 160 x 17.5 mm | Module Weight: 0.40 kg
• Resolution: 104 x 52 (5408 dots)
• Input Voltage: DC 4.5V ±0.1V | Max Current: 8.94A
• Power Consumption: Max 40W
• Scan: 1/13 Scan
Display Performance
• Brightness: ≥4200 cd/m²
• Refresh Rate: ≥3840Hz
• Grayscale: 13-bit (RGB)
• Viewing Angle: 140°(H) / 130°(V)
Environmental & Lifespan
• Operating Temperature: -20°C to 40°C
• Life Span: 5000 hours min (Average Failure Free Time)
Recommended Cabinet (960 x 960 mm)
• Cabinet Size: 960 x 960 mm
• Cabinet Weight: 29.7kg ± 0.5kg
• Max Power: ≤724W | Avg Power: ≤241W
Signal & Control
• Input Signal: DVI/VGA/HDMI/DP, composite video, S-VIDEO, YPbPr (HDTV)
• Manufacturer: Xiamen Qiangli
Downloads
Specifications
Technical Specifications
- Pixel Pitch:3mm
- Pixel Density:105625 dots/m²
- Configuration:1R1G1B SMD1515
- Module Size:320 x 160 x 17.5 mm
- Module Weight:0.40 kg
- Resolution:104 x 52 (5408 dots)
- Input Voltage:DC 4.5V ±0.1V
- Max Current:8.94A
- Power Consumption:Max 40W
- Brightness:4200 cd/m²
- Refresh Rate:3840Hz
- Grayscale:13-bit (RGB)
- Viewing Angle:140°(H) / 130°(V)
- Operating Temperature:-20°C to 40°C
- Life Span:5000 hours min (Average Failure Free Time)
- Recommended Cabinet Size:960 x 960 mm
- Scan:1/13 Scan
