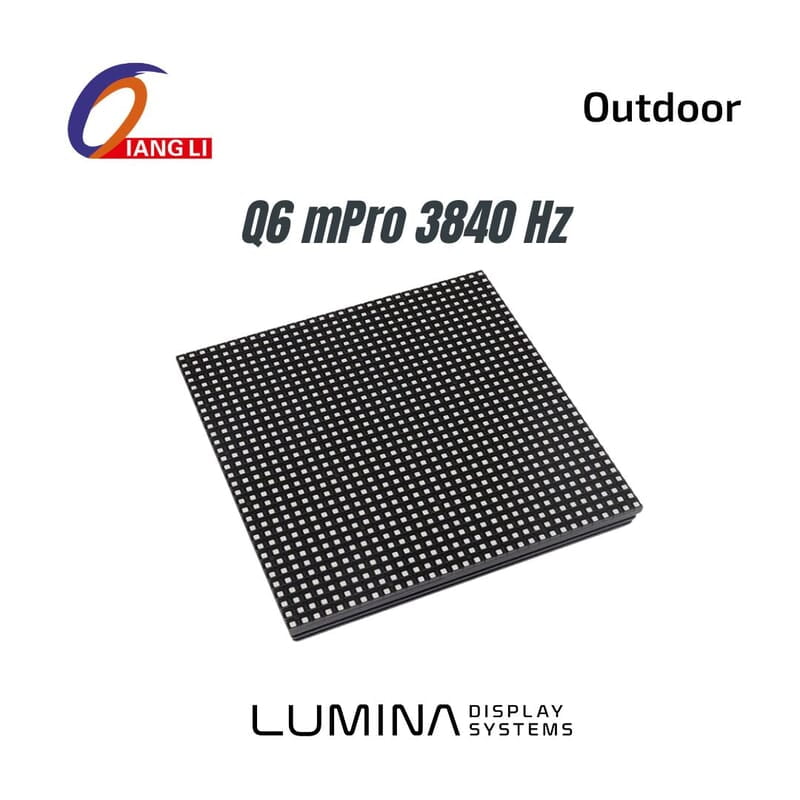

Qiangli Q6 MPro - P6 Outdoor LED Module, 3840Hz
6mm pitch SMD2525 outdoor LED module — 4,200 cd/m² brightness, 3,840Hz refresh and 1/8 scan constant-current driving, rated -20°C to 40°C.
₹800.00
Share :
Product Details
Product Overview
Qiangli Q6 Mpro 3840Hz Outdoor LED Module (Qiangli Item No. Q6-8S-H-2525) is a 6mm pixel pitch, SMD2525 outdoor full-color display module built for high-brightness video walls and signage, driven by constant current with 1/8 scan.
Module Specifications
• Pixel Pitch: 6mm | Pixel Density: 27,777 dots/m²
• Configuration: 1R1G1B | LED Lamp: SMD2525
• Module Size: 192x192x18mm | Weight: 0.32kg ± 0.01kg
• Structure: Lamp & IC in same PCB | Resolution: 32x32 (1,024 dots)
• Input Voltage: DC 4.5V (±0.1V) | Max Current: up to 7.75A
• Power Consumption: up to 35W | Driving: Constant Current, 1/8 Scan
Display Performance
• Brightness: 4,200 cd/m² | Brightness Uniformity: over 0.95
• Refresh Rate: min 3,840Hz | Frame Rate: min 60fps
• Grayscale: 13-bit (RGB) | Display Colors: 4,398 Billion
• Viewing Angle: 140±10 deg (H) / 130±10 deg (V)
• Best Viewing Distance: min 11m
Environmental & Lifespan
• Operating Environment: Outdoor
• Operating Temperature: -20°C to 40°C
• Operating Humidity: 10%-90% RH (No condensation)
• Life Span: min 5,000 hrs (Average Failure Free Time)
Recommended Cabinet (768x768mm)
• Cabinet Size: 768x768x90mm (without module)
• Cabinet Pixel Density: 128x128 (16,384 dots)
• Cabinet Area: 0.59 m² | Cabinet Weight: 18.5kg ± 0.5kg
• Cabinet Max Power: up to 558W | Avg Power (1/3 max): up to 186W
• Distribution Power (78% capacity): up to 715W
Signal & Control
• Input Signal: DVI/VGA/HDMI/DP, Composite Video, S-Video, YPbPr(HDTV)
• Control Mode: Computer control, point-to-point, video sync, real-time display
• Brightness Adjustment: 256-grade manual/automatic
• Manufacturer: Xiamen Qiangli Jucai Opto-Electronic Technology Co., Ltd.
