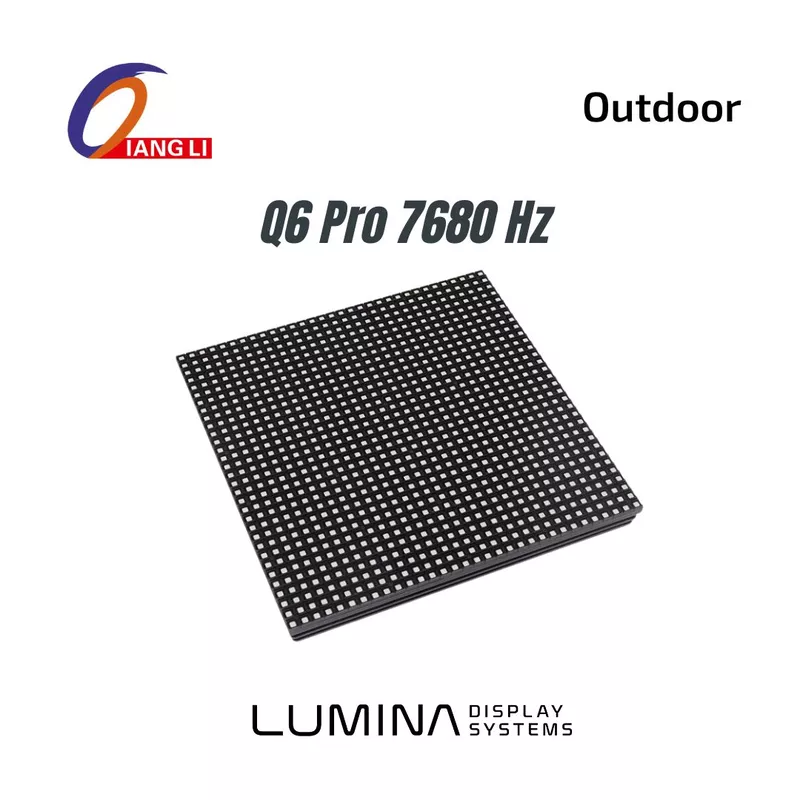

Qiangli Q6 Pro - P6 Outdoor LED Module, 7680Hz

Qiangli Q6 Pro 7680Hz Outdoor LED Module (Qiangli Item No. Q6Pro, Spec 8S-Pro-2525) is a 6mm pixel pitch, SMD2525 outdoor full-color display module built for high-brightness video walls and signage, driven by constant current with 1/8 scan. The Pro variant upgrades the standard Q6 with a 7,680Hz refresh rate, 4,500cd/m² brightness and 14–16 bit greyscale for broadcast-grade camera shooting.

• Pixel Pitch: 6mm | Pixel Density: 27,777 dots/m²

• Configuration: 1R1G1B | LED Lamp: SMD2525

• Module Size: 192x192x18mm | Weight: 0.32kg ± 0.01kg

• Structure: Lamp & IC in same PCB | Resolution: 32x32 (1,024 dots)

• Input Voltage: DC 4.5V (±0.1V) | Max Current: up to 7.75A

• Power Consumption: up to 35W | Driving: Constant Current, 1/8 Scan

• Brightness: 4,500 cd/m² | Brightness Uniformity: over 0.95

• Refresh Rate: min 7,680Hz | Frame Rate: min 60fps

• Grayscale: 14–16 bit (RGB) | Display Colors: 4,398 Billion

• Viewing Angle: 140±10 deg (H) / 130±10 deg (V)

• Best Viewing Distance: min 10.8m

• Operating Environment: Outdoor

• Operating Temperature: -20°C to 40°C

• Operating Humidity: 10%-90% RH (No condensation)

• Life Span: min 5,000 hrs (Average Failure Free Time)

• Screen Flatness: under 1 mm/m² (horizontal and vertical)

• Cabinet Size: 768x768x90mm (thickness without module)

• Cabinet Pixel Density: 128x128 (16,384 dots) | 16 modules per cabinet

• Cabinet Area: 0.59 m² | Cabinet Weight: 18.5kg ± 0.5kg

• Cabinet Max Power: up to 558W | Avg Power (1/3 max): up to 186W

• Distribution Power (78% capacity): up to 715W

• Power Supply Loading: 40A supply 3-4 pcs, 50A supply 4-5 pcs, 80A supply 7-8 pcs

• Input Signal: DVI/VGA/HDMI/DP, Composite Video, S-Video, YPbPr(HDTV)

• Control Mode: Computer control, point-to-point, video sync, real-time display

• Brightness Adjustment: 256-grade manual/automatic

• Protection: Over temperature / overload / power down / over current / over voltage / lightning protection (optional)

• Manufacturer: Xiamen Qiangli Jucai Opto-Electronic Technology Co., Ltd.
